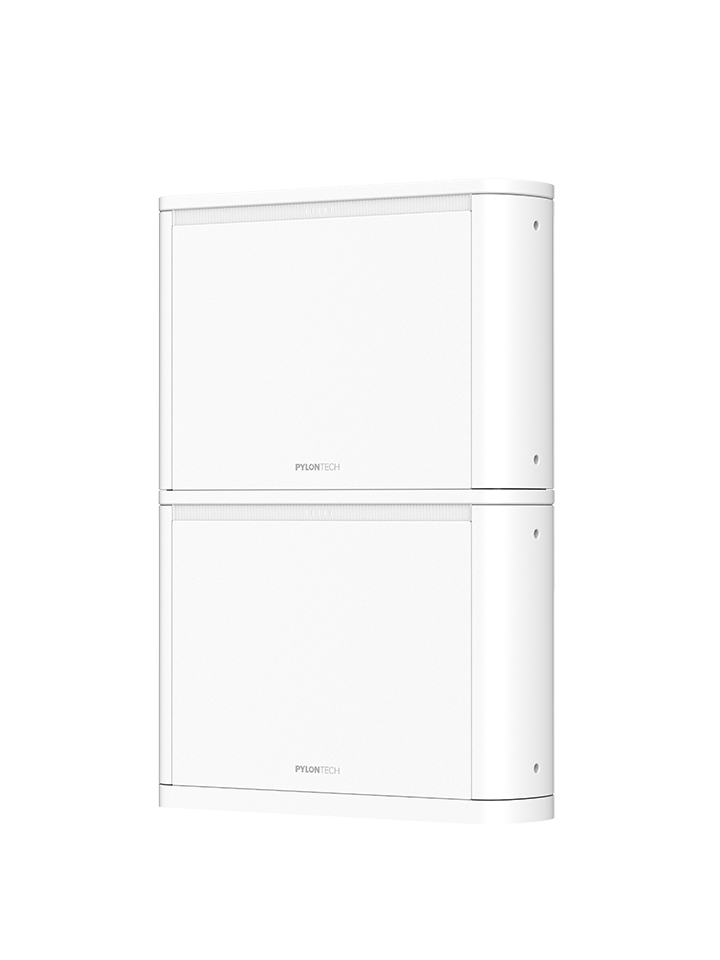

Storage wall 51.2V 80a Pelio de Pylontech 4864Wh

Wall mount style sealed deep cycle lithium battery that includes an advanced Battery Management System (BMS) for maximum protection and optimization.

Certified UL 1973, the battery is installed on the wall to optimize the available interior space of the residence.

It is suitable for hybrid systems that combine grid and solar energy.

Main features:

Nominal voltage: 51.2V
Ability : 80A

Recommended charge/discharge current: 80A
Maximum charge/discharge current: 100-120A
Peak discharge current: 120-200A

Maximum number of units in parallel: 20

Fixing type: Wall mount
Dimensions: 15.55 X 22.76 X 6.5 in
Weight : 45 kg

Advanced Features:

Communication ports: RS485, CAN, Wifi, USB 2.0
LCD display screen: No
Short circuit protection: Yes

Terms of Use:

Charging temperature: 0 to 50°C
Discharge temperature: -10 to 50°C
Storage temperature: -20 to 45°C (3 months)

Certifications and security:
IP65
Certifications: IEC62619, IEC63056, IEC62040, IEC62477-1, UL1973, U1642,UL9540A, VDE2510-50, IEC61000-6-2, IEC61000-6-3, N38.3

Guarantee :
10 year limited warranty on the product
10 year limited performance warranty
