Solar Energy System on Network (BATTERY-free) - 5.4KW

Using solar panels, produce energy and reduce your electricity bill.

A network system allows you to produce electricity and connect your production equipment to your supplier's network. It is possible to do this with or without battery reserve. The principle is that the energy can either be consumed by the occupants or even be injected into the electricity network. The advantage is that in the event of an energy deficit, your supplier still provides you with electricity.

To reinject electricity, an agreement with your supplier must be concluded.

Solar field power: 5,400W

The solar field of this system could produce on average up to 17.92KWh daily considering approximately (1213 hours) of annual sunshine*.

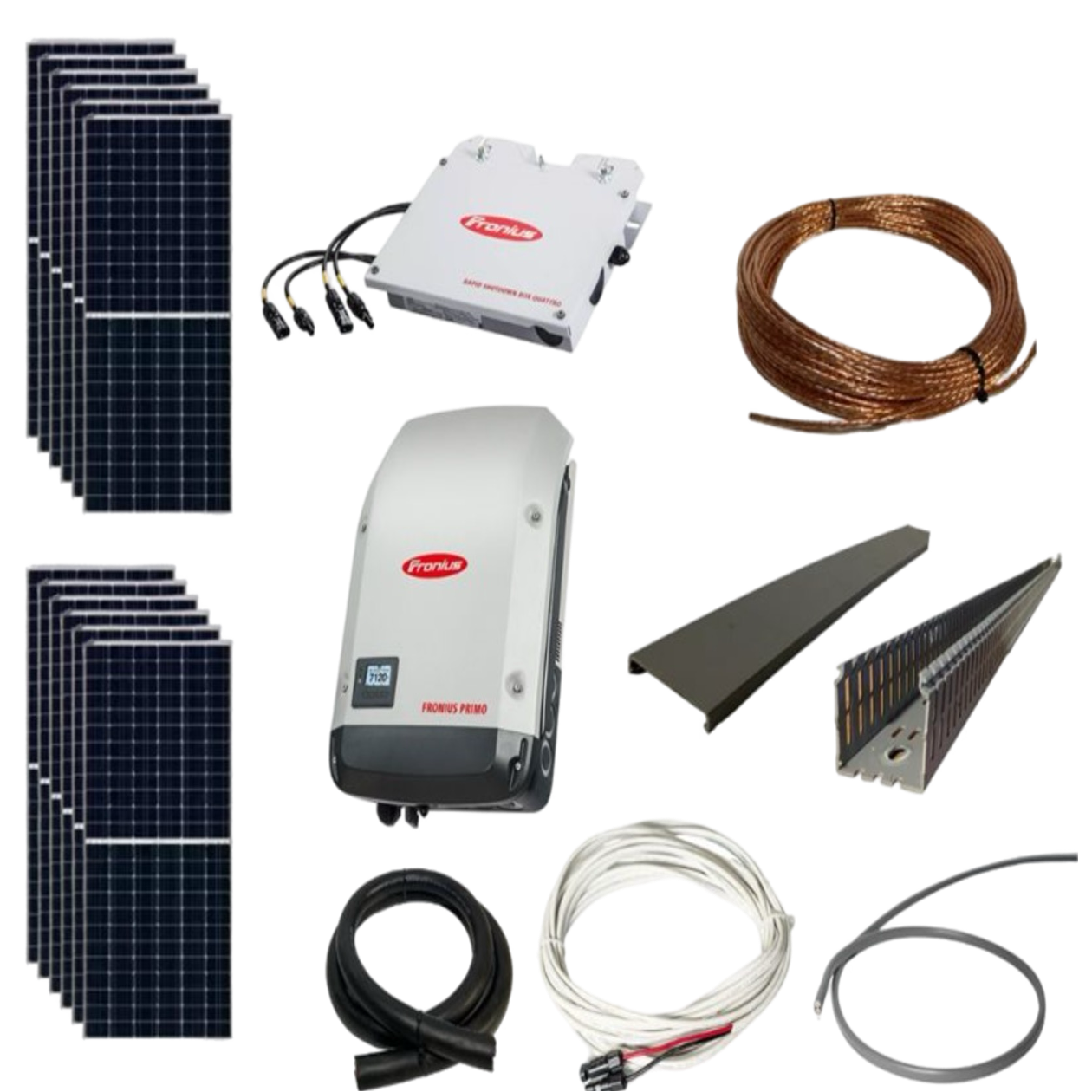

Solar panels included:

- 12 450W polycrystalline solar panels

Batteries included: None

This is an energy production system that does not have a battery to store the electricity produced.

To obtain an estimate of the performance of your system and the expected savings on your electricity bill, please contact our technical team.

To have a solar energy system with battery, please visit the section Hybrid solar systems.

For an emergency (backup) system including batteries only, visit the Emergency Systems (Backup) section.

Inverter included:

The inverter included in our kit is Fronius Primo 5.0-1 Inverter.

This inverter is tailor-made for connection to the network.

Inverter type: Single phase

Input data:

MPP Name: 2

Input voltage: 410V
Output voltage: 208-240V

PV generator power max. : 7,5 kW peak

Output data:

AC rated power: 5000W
Max output power: 5000VA

Automatic transfer switch: No

Protections:

Overload shutdown
Protection de court circuit

Protections included:

- Fronius Rapid Shutdown Quattro
- Ground wire

Cables and connectors included:

To have enough cables, the maximum distance between the solar array and the rest of the equipment is 35 feet.

Brackets and fixings included:

Support type: On the roof

The panels are fixed to a rail system on the roof.

The set includes sealant and fastening systems to avoid any risk of water infiltration.

As the panels are guaranteed by the manufacturer for 25 years, we strongly recommend redoing the roof if it is starting to show its age.

Other types of brackets and fixings may be available.

Connection diagram included:

All our solar kits come with a connection diagram to help you install your equipment if you wish to do it yourself.

However, since your devices will be connected to the Hydro-Québec or your municipality's network, an electrician will have to make the connection.

The services of an electrician may be included if you decide to opt for installation by our team.

We strongly recommend that installation be done by certified professionals. To have your installation evaluated, speak to one of our advisors.

Before proceeding:

We advise you to have your project approved before purchasing your equipment. Different regulations may apply depending on the territory where you are installing. Also, each electricity supplier has its own rules to govern this practice.

In addition, as mentioned in the previous section, you will also need to hire a master electrician. At your request, we can help you with your procedures and direct you to resources before completing your purchases.

Technical advice:

The components of our solar systems are compatible together. However, the sets are presented to you for information purposes only, we cannot guarantee that they meet your energy needs. It is your responsibility to ensure the sufficiency of the solar systems you purchase. You can contact our advisors for additional information.

*The average sunshine represents that of Quebec City. The calculation was made by considering in particular the following variables: south orientation, angle of inclination equal to the latitude and no shading. The actual sunshine time depends in particular on the location, orientation, temperature, shading and other parameters specific to your installation. Solar system proposals and plans are for illustrative purposes only. Each installation has its particularities and it is your responsibility to ensure in particular the conformity and sufficiency of your installation.

It is also your responsibility to ensure that the installation is carried out by someone with the necessary skills. By purchasing a solar system, you release us from any liability or damage, on any grounds whatsoever, directly or indirectly linked in particular to the quality or conformity of your installation. Please ensure that the cable lengths and connectors are sufficient for the installation you plan to make. Additionally, because your solar system equipment produces electricity, make sure you know the precautions to take when handling it. Improper installation can damage the components of your system or cause damage to neighboring installations or other property that may be located there. Under no circumstances will we be held liable for such damage.
