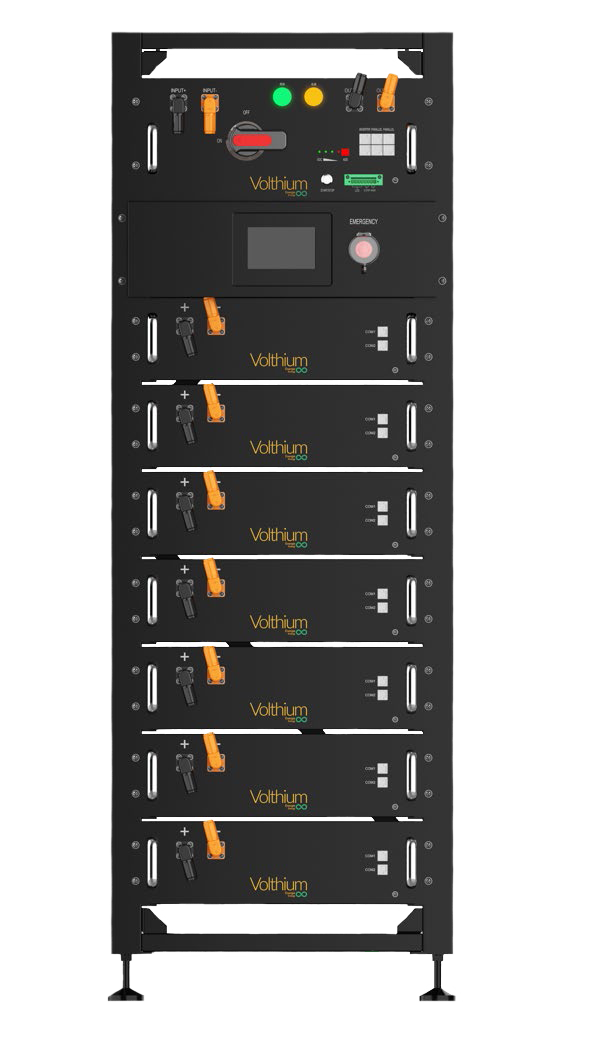

Rackmount high voltage 410V battery module of volthium

Main features:

Voltage: 409.6V
Ability : 100Ah
Capacity@20A: 300min
Energy: 40.96kWh

Recommended charging current: 100A
Maximum charging current: 100A
Continuous discharge current: 100A

Number of modules: 8

Support Type: Rackmount
Terminal type: Surlok style | AWG-2/0
Format: 3U
Weight : 45.8 kg (101 lbs)
Dimensions: 21.5 x 23 x 61.4 inches

Performance and lifespan:

30% discharge: ≥ 8,200 cycles
80% discharge: ≥ 6,000 cycles
100% discharge: ≥ 3,500 cycles

Advanced Features:

Bluetooth: With accessory (optional)
LED screen: Yes
Self-heating: No
Communication ports: RS485, CAN (VE.CAN compatible)
Short circuit protection: Yes

Terms of Use:

Charging temperature: 0 to 45°C
Discharge temperature: -20 to 65°C
Storage temperature: -20 to 45°C

Certifications:

UN38.3 | Code Compliant FULL STACK Certified ETL SPE-1000
Cells certified UL1973, CSA UL9540A

Manufacturer's Warranty:
10 years

Volthium 410V High Voltage Rackmount Battery Module - Datasheet (EN)
