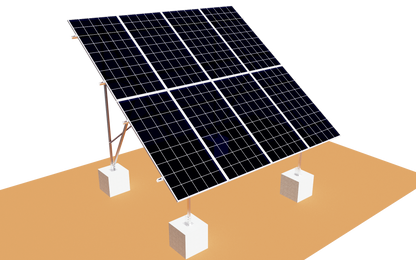

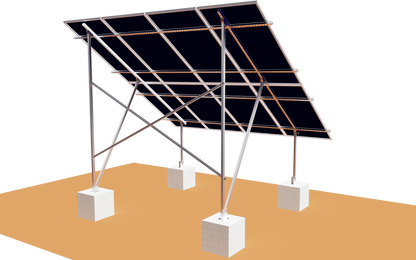

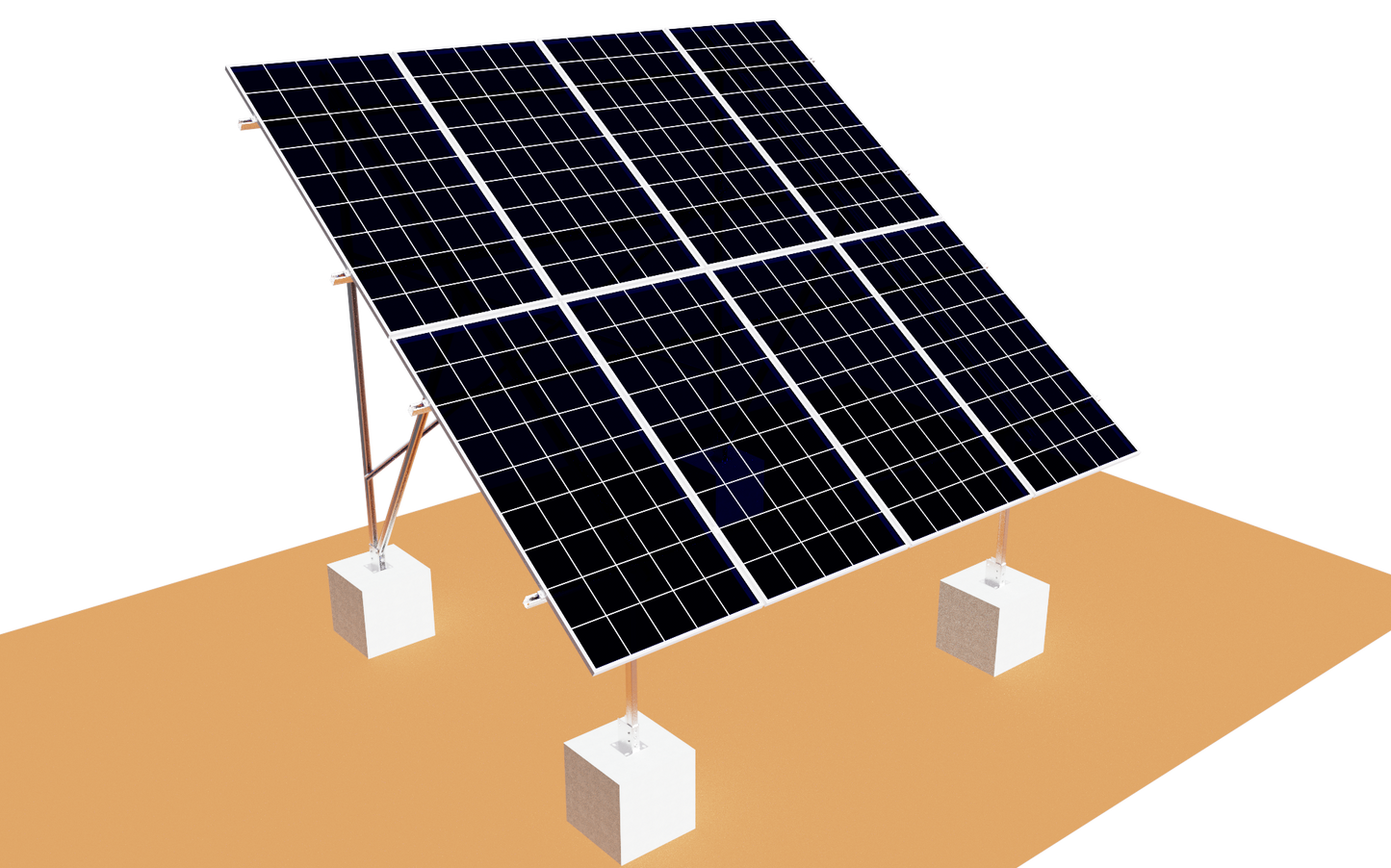

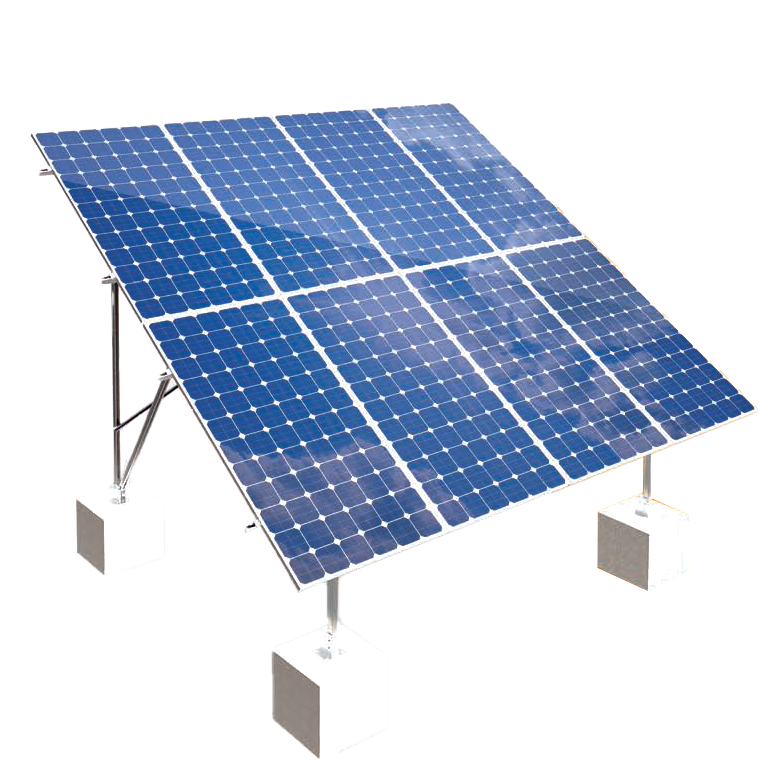

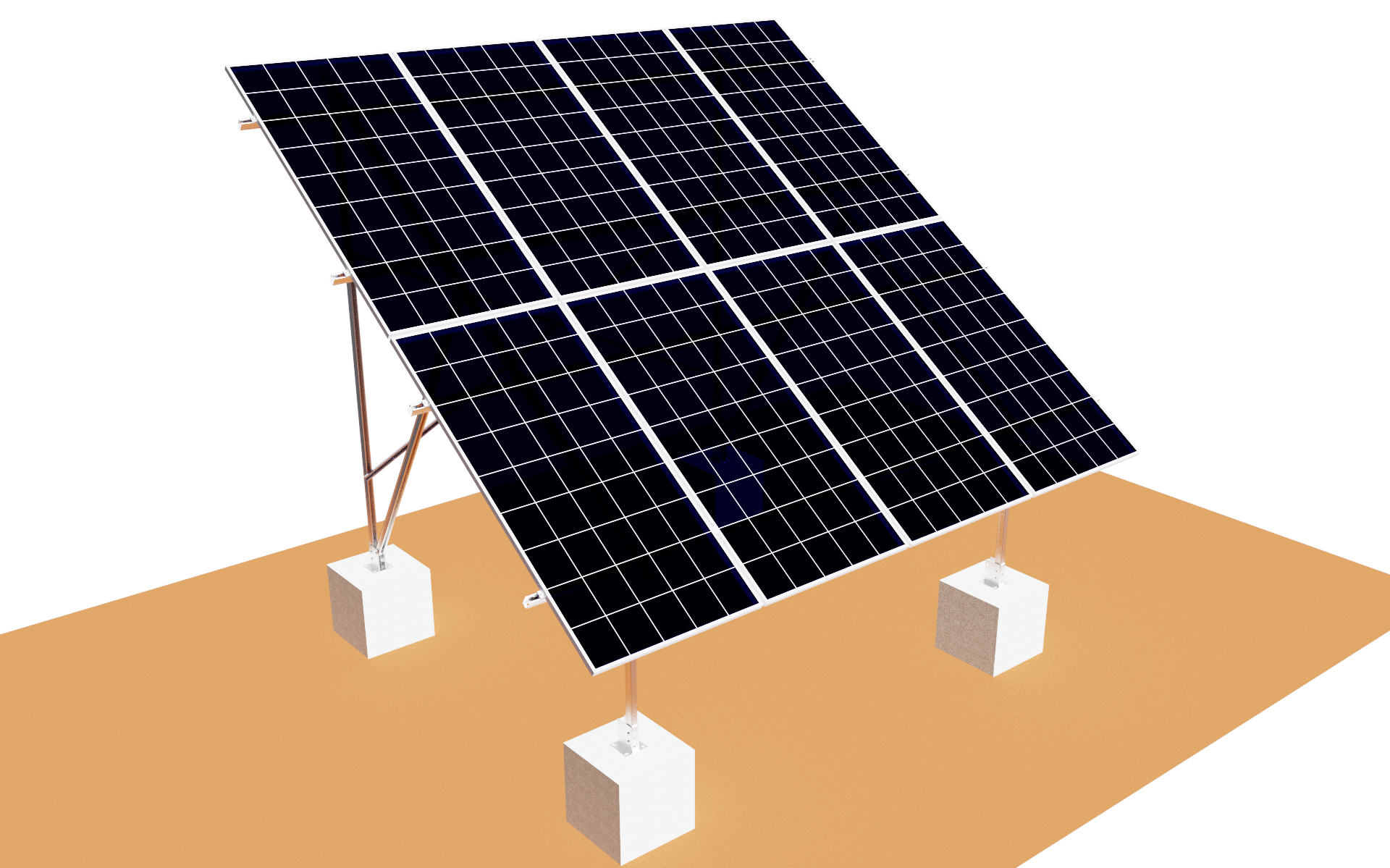

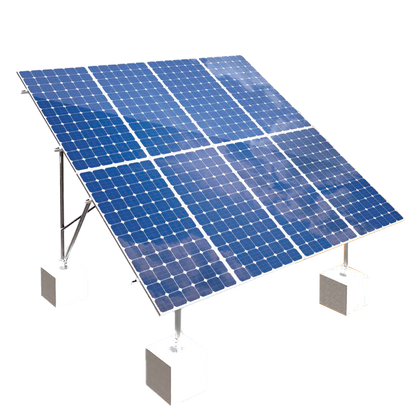

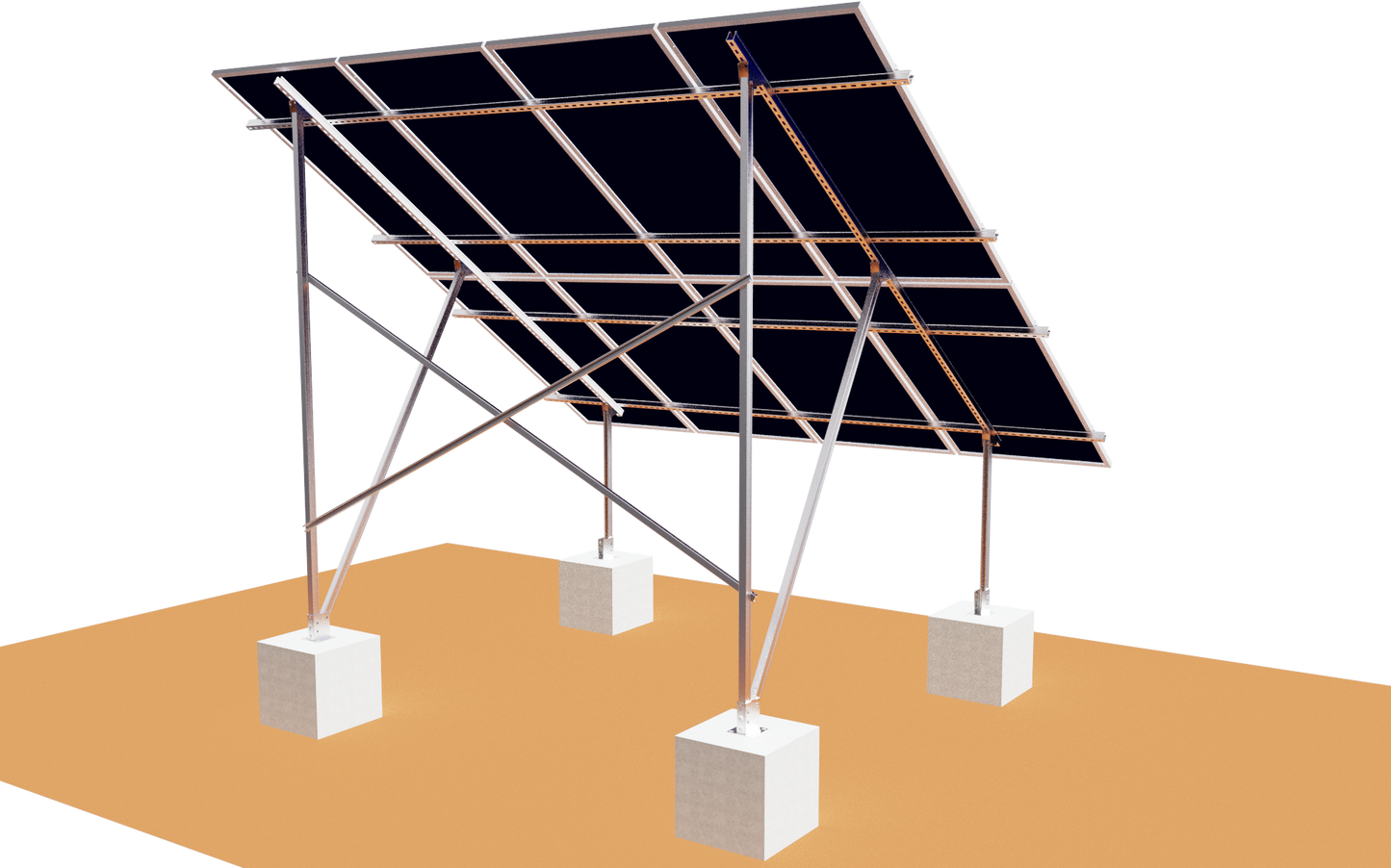

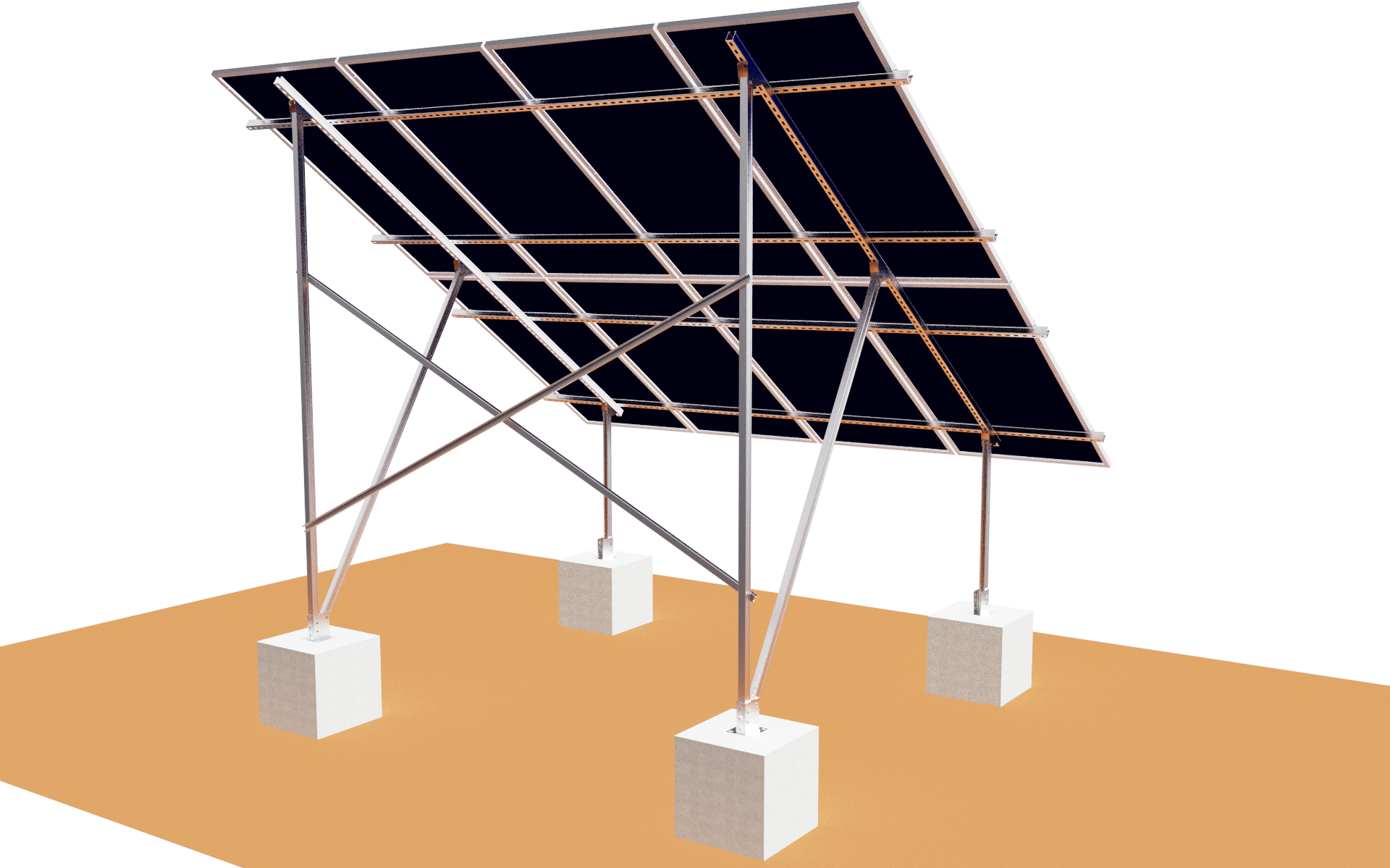

Elios Terra G8 floor support system - 8 panels

Install your solar panels using this ground support kit that can accommodate up to 8 panels.

Features:

Mounting type: On the ground
Compatibility: Suitable for 8 solar panels of 60 or 72 cells
Orientation: Horizontal
Dimensions (Assembled): 173.23 X 149.6 X 120.08 inches
Adjustable tilt: 35°
Maximum supported wind speed: 42 m/s
Maximum snow load: 1.4 kN/m²

Materials and resistance:
- Galvanized steel structure for increased durability
- Stainless steel hardware included
- Robust design for long life

Guarantee :
5 year limited warranty

*Solar panels and concrete slabs not included.

Solar Panel Mounting Bracket - Elios Terra G8 - Datasheet (EN)
Solar Panel Mounting Bracket - Elios Terra G8 - Installation Manual (EN)
