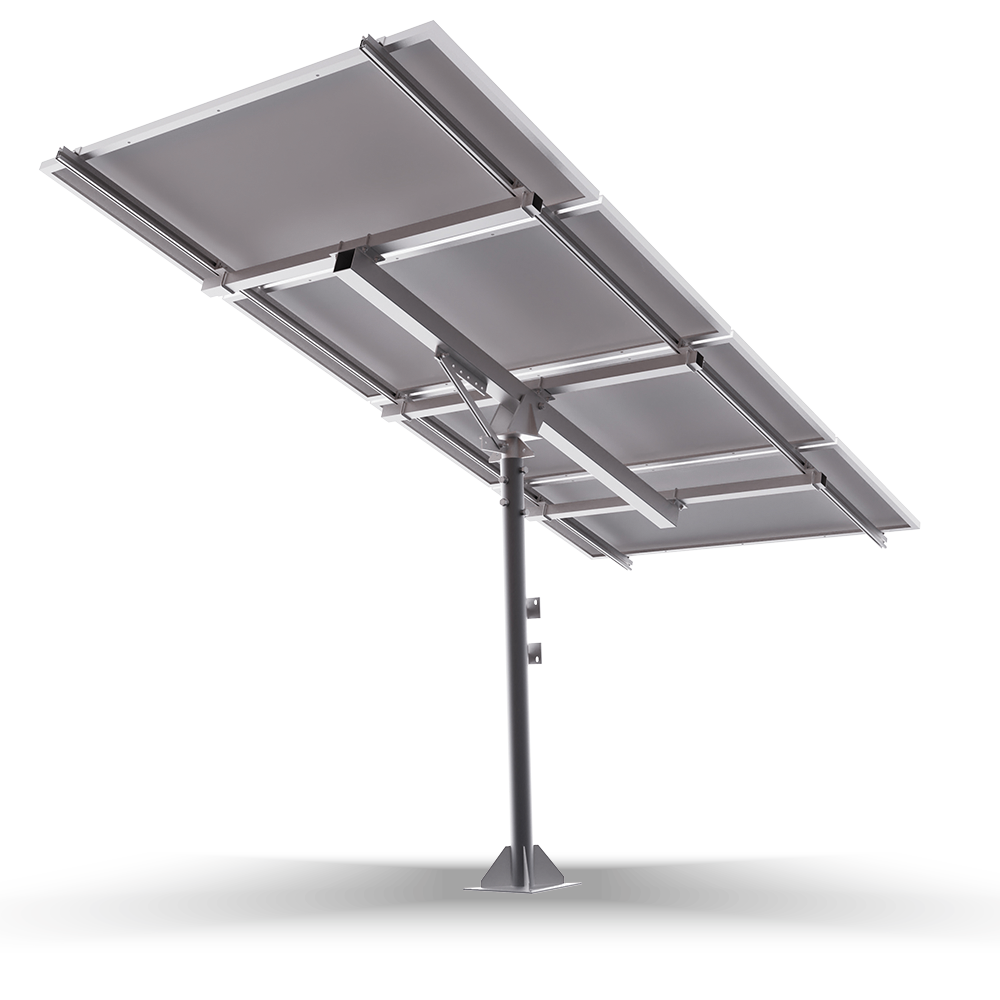

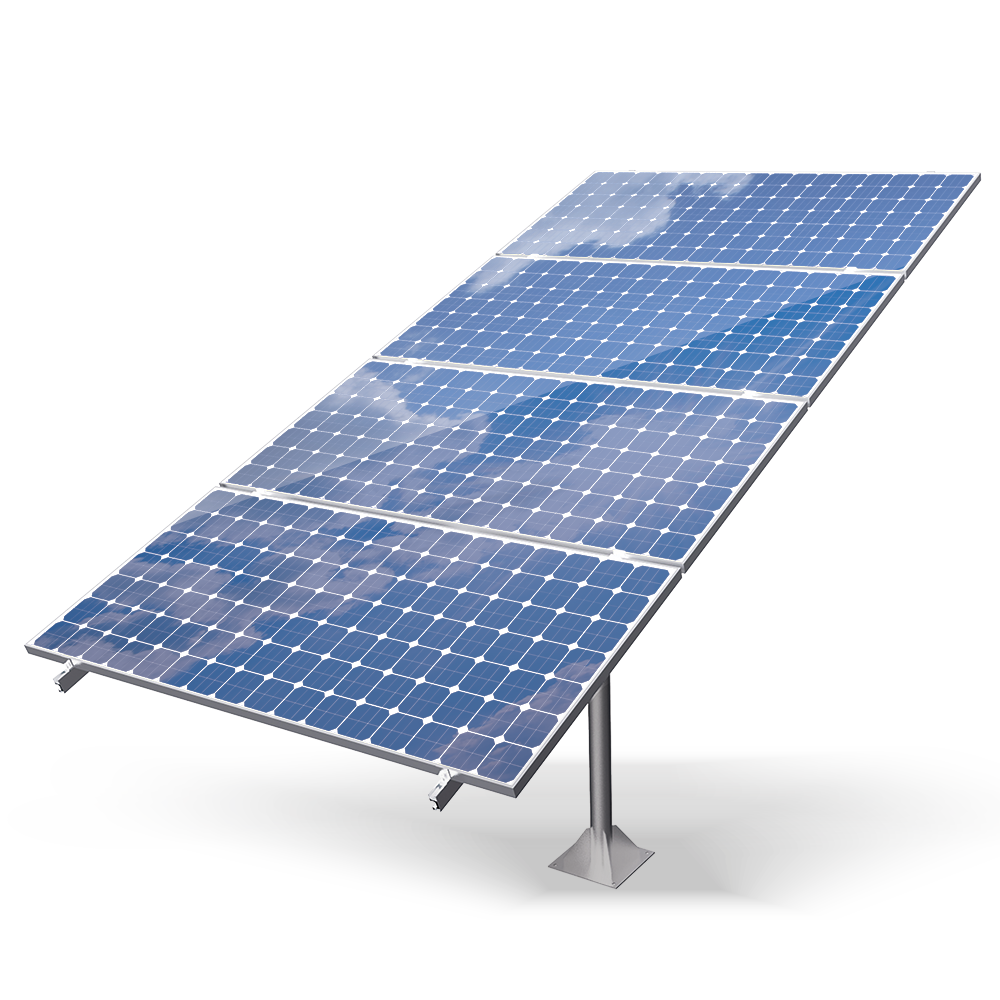

Elios Arbora P4 Mat head support system - 4 panels

Install your solar panels using this masthead mounting kit that can accommodate up to 4 panels.

The angle and height are easily adjusted for year-round appliance performance optimization.

Features:

Mounting type: On mat (post mounting)
Compatibility: Suitable for 4 solar panels of 60 or 72 cells
Orientation: Horizontal
Adjustable tilt: 20° to 70°
Maximum supported wind speed: 55 m/s
Maximum snow load: 1.4 kN/m²

Materials and resistance:
- Galvanized steel structure for increased durability
- Stainless steel hardware included
- Robust design for long life

Guarantee :
5 year limited warranty

Finishing and fixing to the floor:

Avoid concrete blocks and secure your setup to the ground using the Elios Arbora Basket - 4 Panels. These baskets are designed to support the Elios Arbora P4 masthead system.

Check out the Elios Arbora Basket - 4 Panels product to learn more.

*Solar panels not included.

System masthead support - Elios Arbora P4 - 4 panels - Technical sheet (EN)
System Elios Arbora P4 masthead support - 4 panels - Installation manual (EN)
