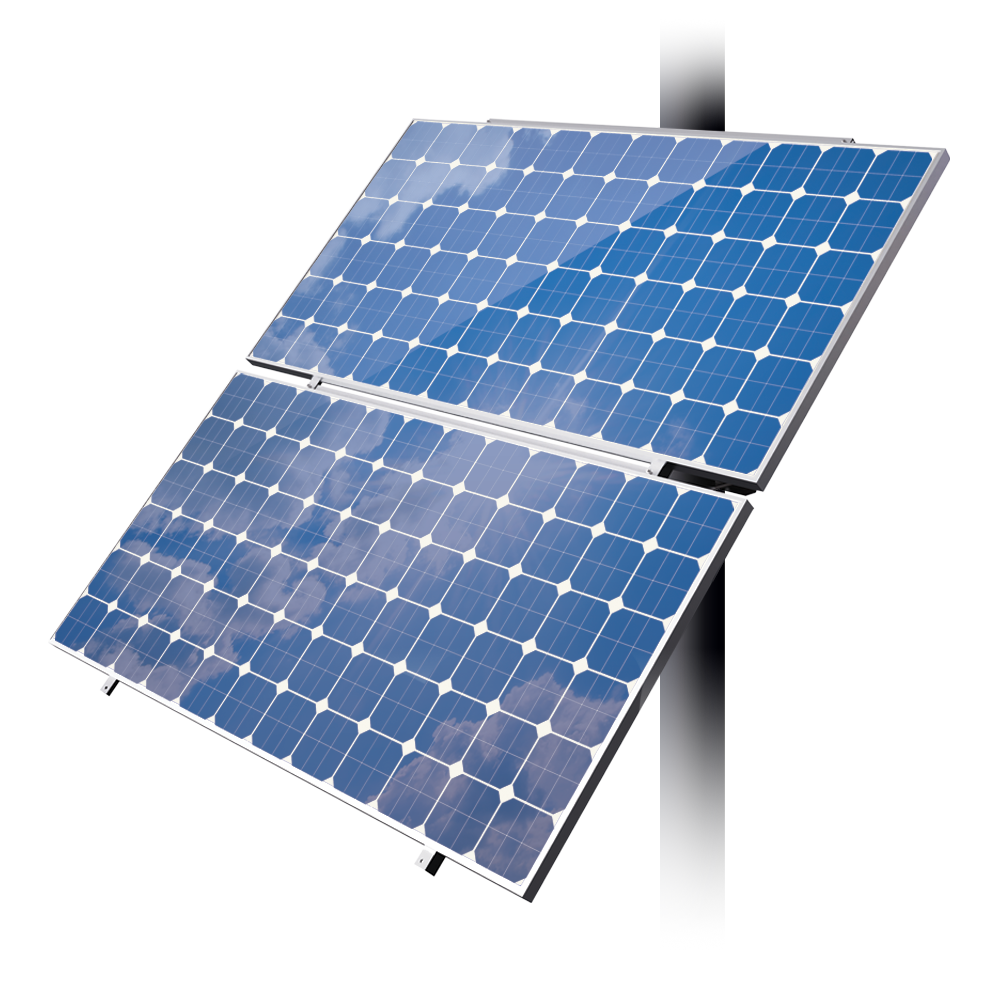

Elios Koala M2 - 2 panels

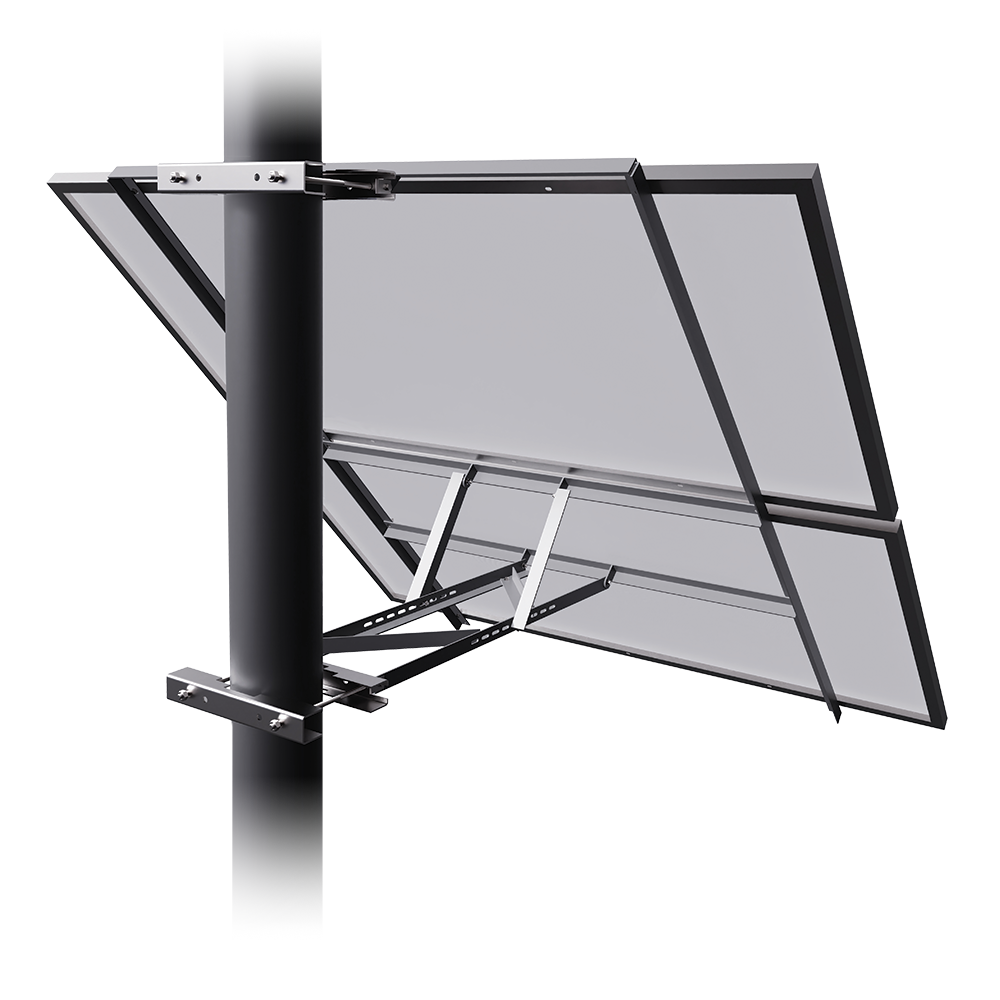

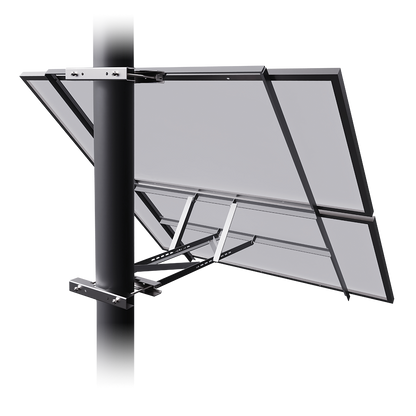

Securely and permanently attach your panels to posts using the Elios Koala M2 side mounting system.

Ideal for off-grid, agricultural, surveillance or telecommunications installations, this mount ensures optimal stability even in strong winds and heavy snow loads.

Features:

Mounting type: Side mounting on post
Compatibility: Suitable for 2 x 60 or 72 cell solar panels
Compatible post diameter: 101.6 mm to 203 mm (4" has 8")
Adjustable tilt: 50° to 70°
Maximum supported wind speed: 36 m/s
Maximum snow load: 1.4 kN/m²

Materials and resistance:
- Galvanized steel structure for increased durability
- Stainless steel hardware included
- Robust design for long life

Guarantee :
5 year limited warranty

Solar Panel Mounting Bracket - Elios Koala M2 - Datasheet (EN)
Solar Panel Mounting Bracket - Elios Koala M2 - Installation Manual (EN)
