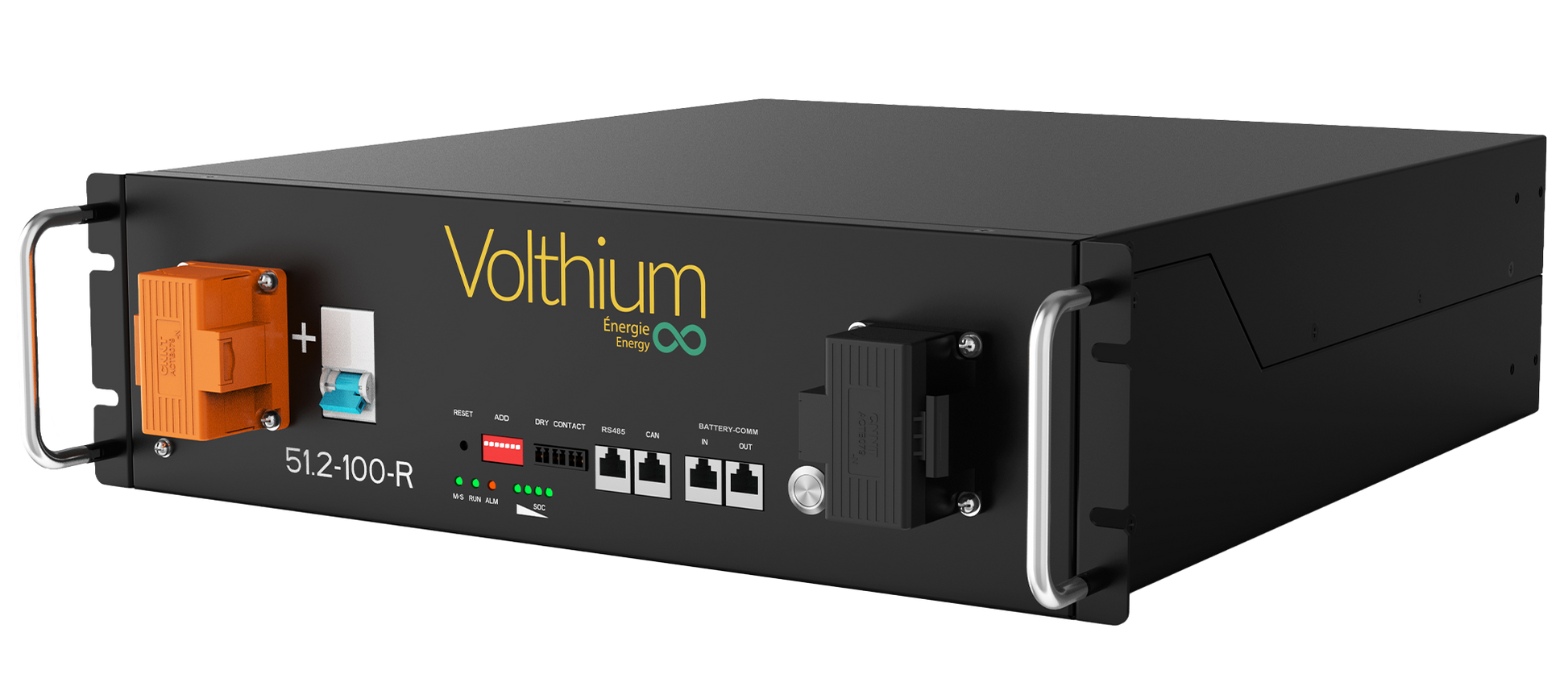

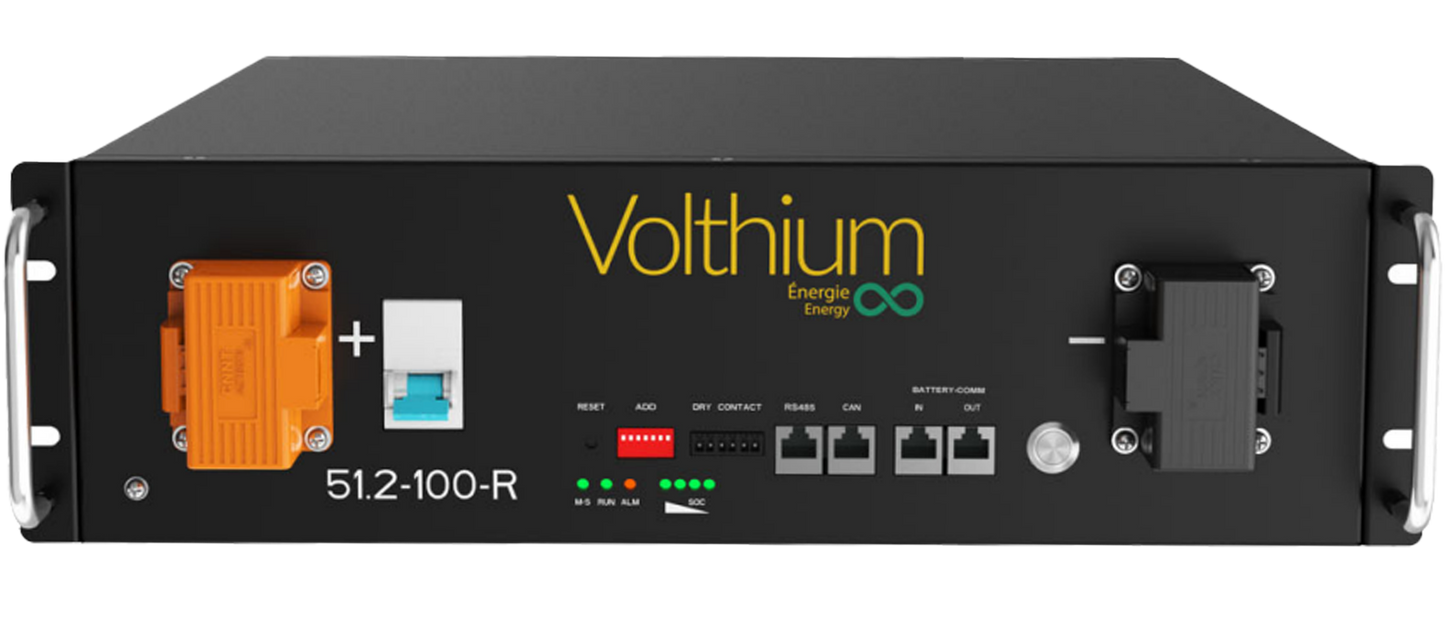

Lithium battery 51.2V 100a rackmount of volthium - self -heating

This deep cycle lithium battery is designed for solar energy storage systems, offering high performance and long durability. It includes an advanced Battery Management System (BMS) for maximum protection and optimization.

Ideal for residential and commercial installations, it allows for expandable storage capacity through connection of up to 16 units in parallel per bank and up to 5 banks.

Main features:

Nominal voltage: 51.2V
Ability : 100Ah (5,120 Wh of energy)
Recommended charging current: 50A
Maximum charging current: 70A
Continuous discharge current: 50A

Maximum number of units in parallel: 32 per bank

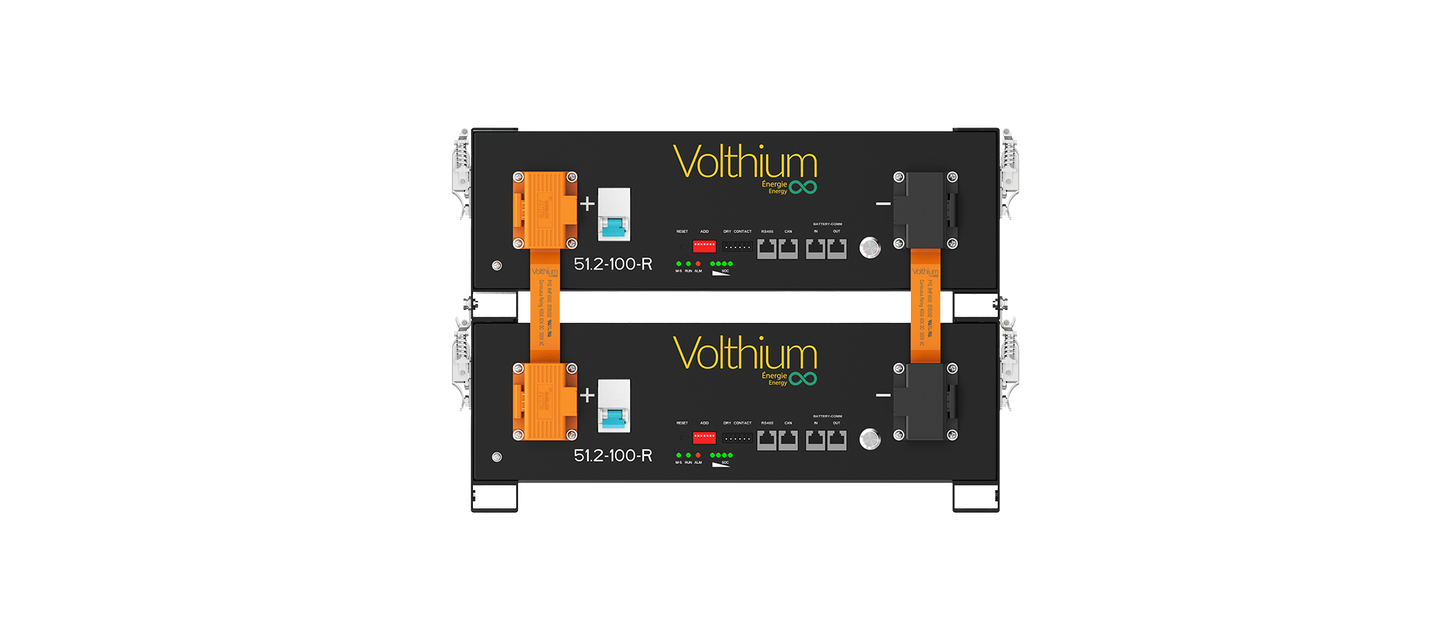

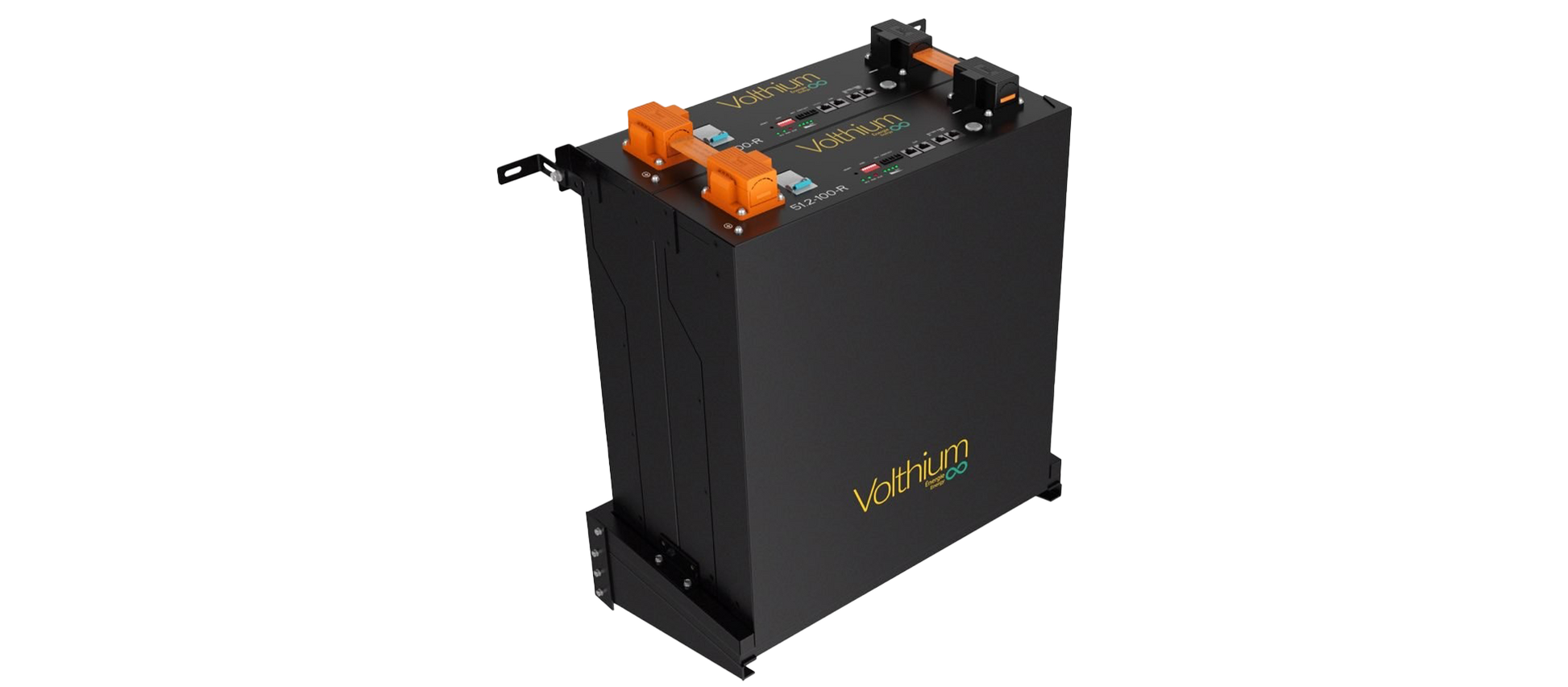

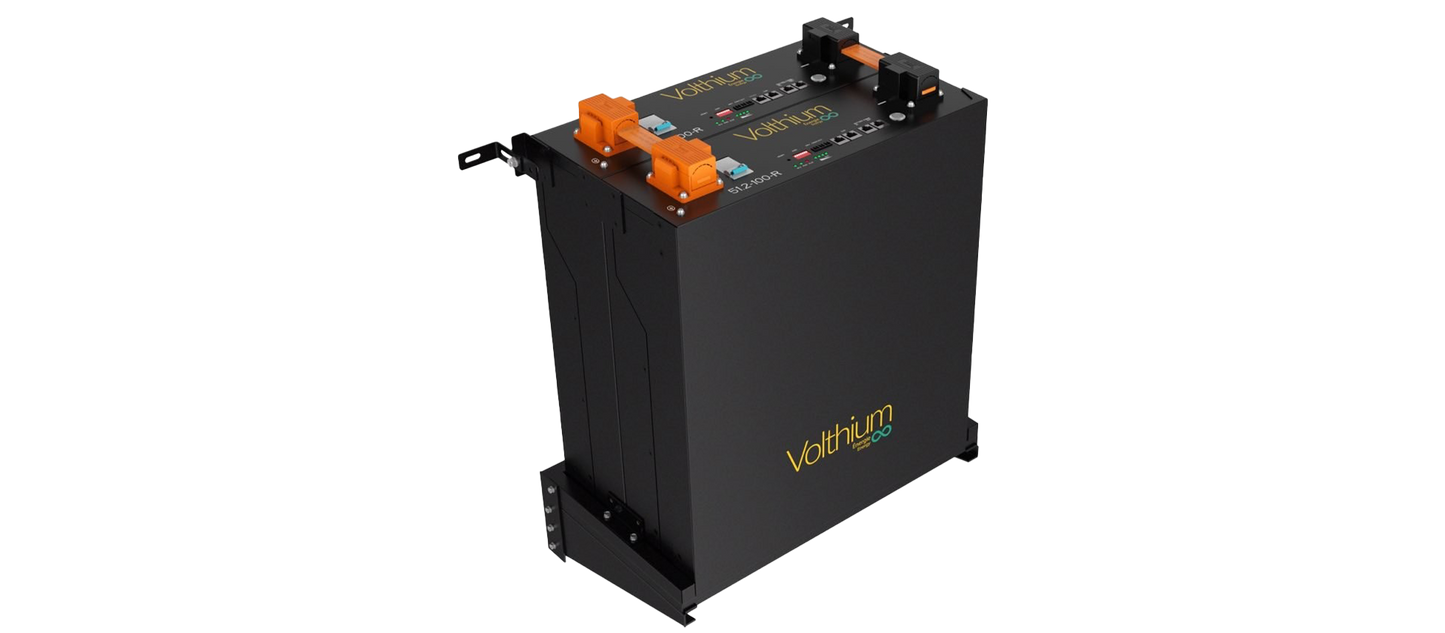

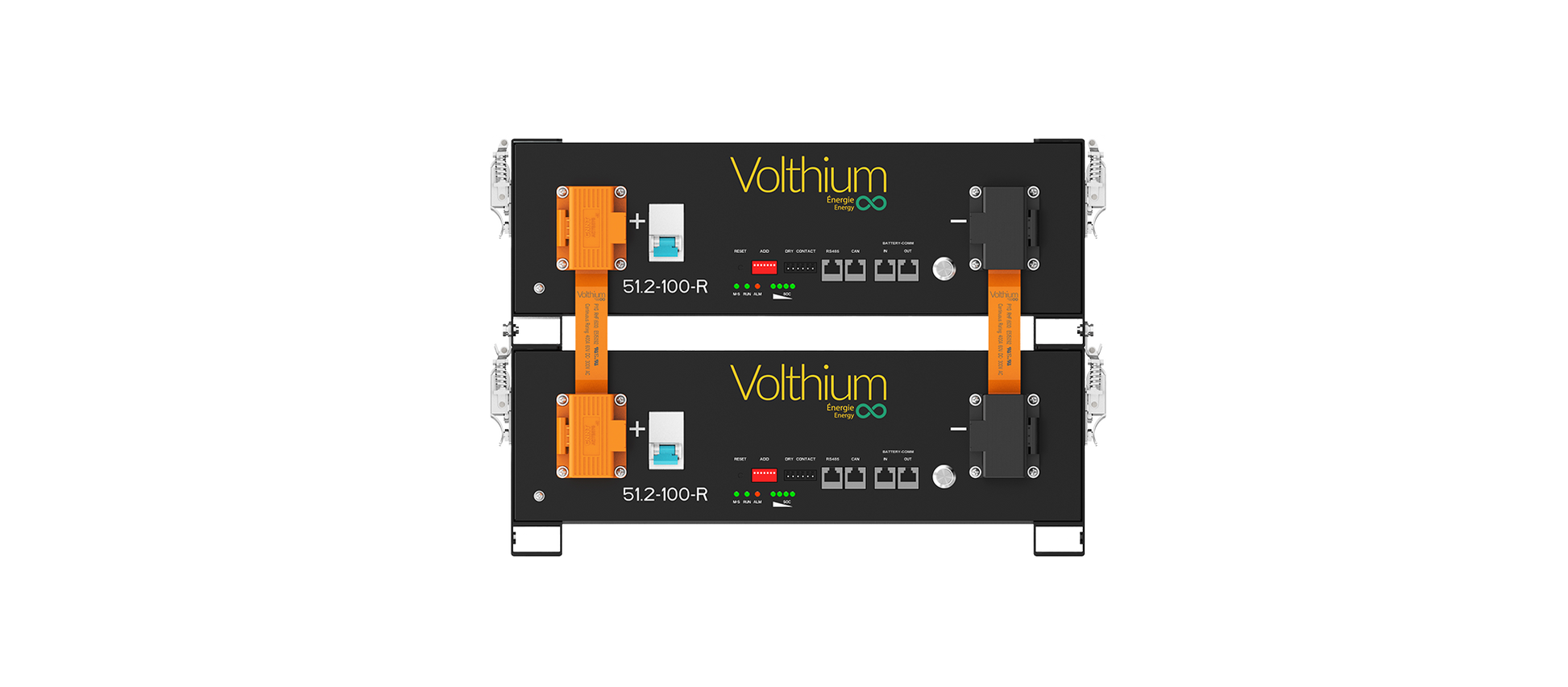

Support Type: Rackmount and wall mount
Format: 3U
Weight : 45.8 kg (101 lbs)
Terminal type: M10

Performance and lifespan:

30% discharge: ≥ 8,200 cycles
80% discharge: ≥ 6,000 cycles
100% discharge: ≥ 3,500 cycles

Advanced Features:

Bluetooth: No
Self-heating: Yes (automatic and manual activation, -30°C to 11°C)
Communication ports: 2x RS485, 2x Batt. Com., 1x CAN (VE.CAN compatible)
Short circuit protection: Yes

Terms of Use:

Charging temperature: 0 to 45°C
Discharge temperature: -20 to 65°C
Storage temperature: -20 to 45°C

Certifications and security:

CSA UL1973 3rd Edition certified assembly
Cells certified UL1973, CSA UL9540A, IEC62619, IEC62660
UL1077 @ CSA C22.2 No. 235-04 certified circuit breaker
UL1977 certified terminal
Transport: UN 3480 | Class 9

Guarantee :
4 years

Volthium 51.2V 100A Rackmount Lithium Battery - Datasheet (EN)
Volthium 51.2V 100A Rackmount Lithium Battery - User Manual (EN)
