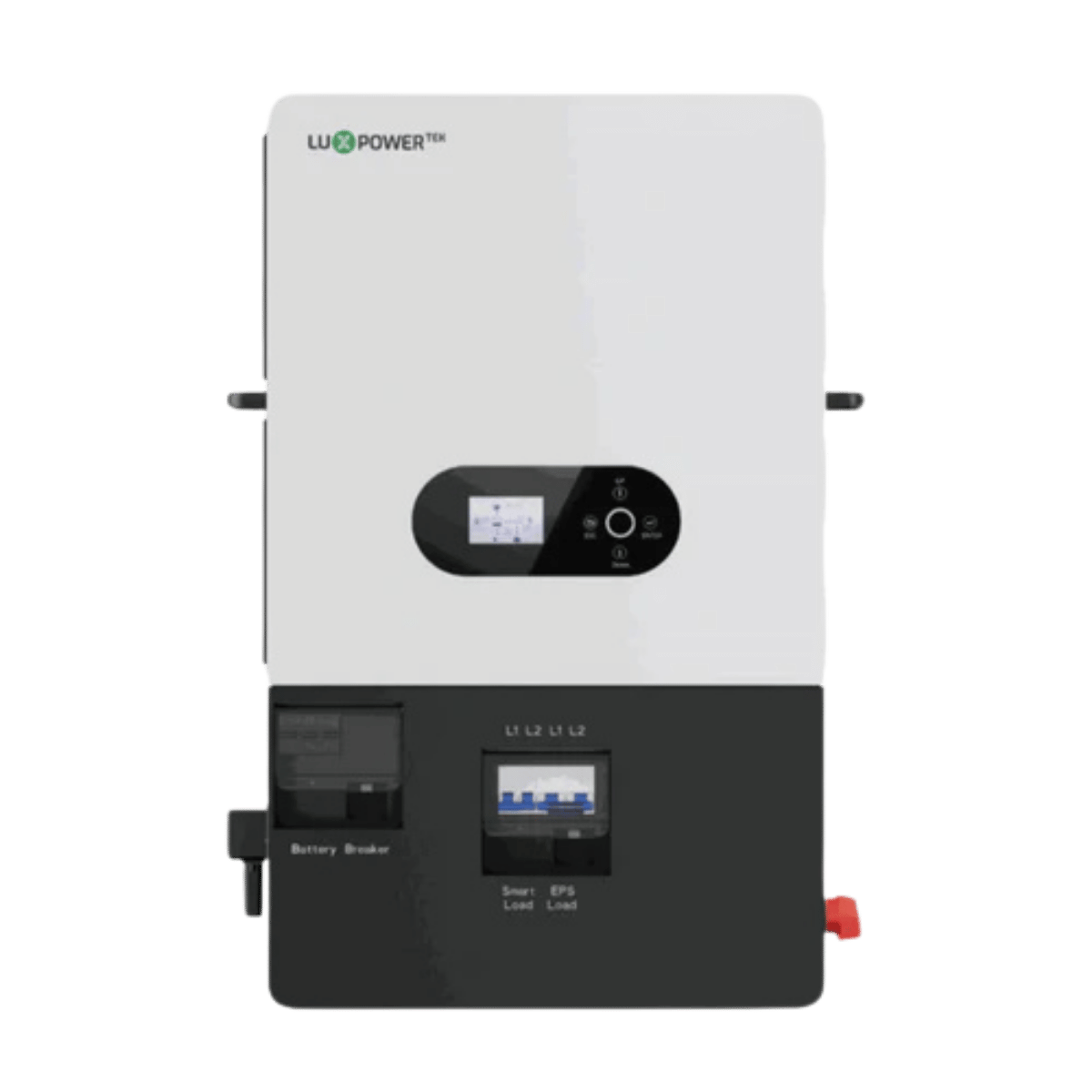

Luxpowertek 12kw hybrid inverter

The LuxpowerTek Hybrid Inverter/Charger is a 3-in-1 accessory that allows you to:

• Convert battery current to 120V/240V.
• Recharge the system batteries using a generator in case of prolonged cloudy weather.
• Connect the solar system to a generator and transform the current if more power is needed.

The Luxpower Tek hybrid inverter/charger is suitable for deep cycle lithium batteries.

Features:

Inverter:

Inverter type: Pure sine.

Transforms the current into 120/240V or 120/208V.

Suitable for 48V systems.

Continuous output power at 25°C: 12 000W

Automatic transfer switch: Yes

The Luxpower Tek hybrid inverter/charger features :

1 display screen
3 MPPTs with 6 independent PV inputs

Charger:

Power: 250A
Battery voltage range: 40V - 60V
Maximum charge/discharge power: 12 000W
Battery reactivation via solar energy: Yes

The smart charger automatically adapts to the battery's needs.

Certifications:

UL 1741
FCC
CSA STD. C22.2 No.107.1 and 330
IEEE STD.1547 and 1547.1
ETL, cETLus, America CEC List, NEC section 690.12
