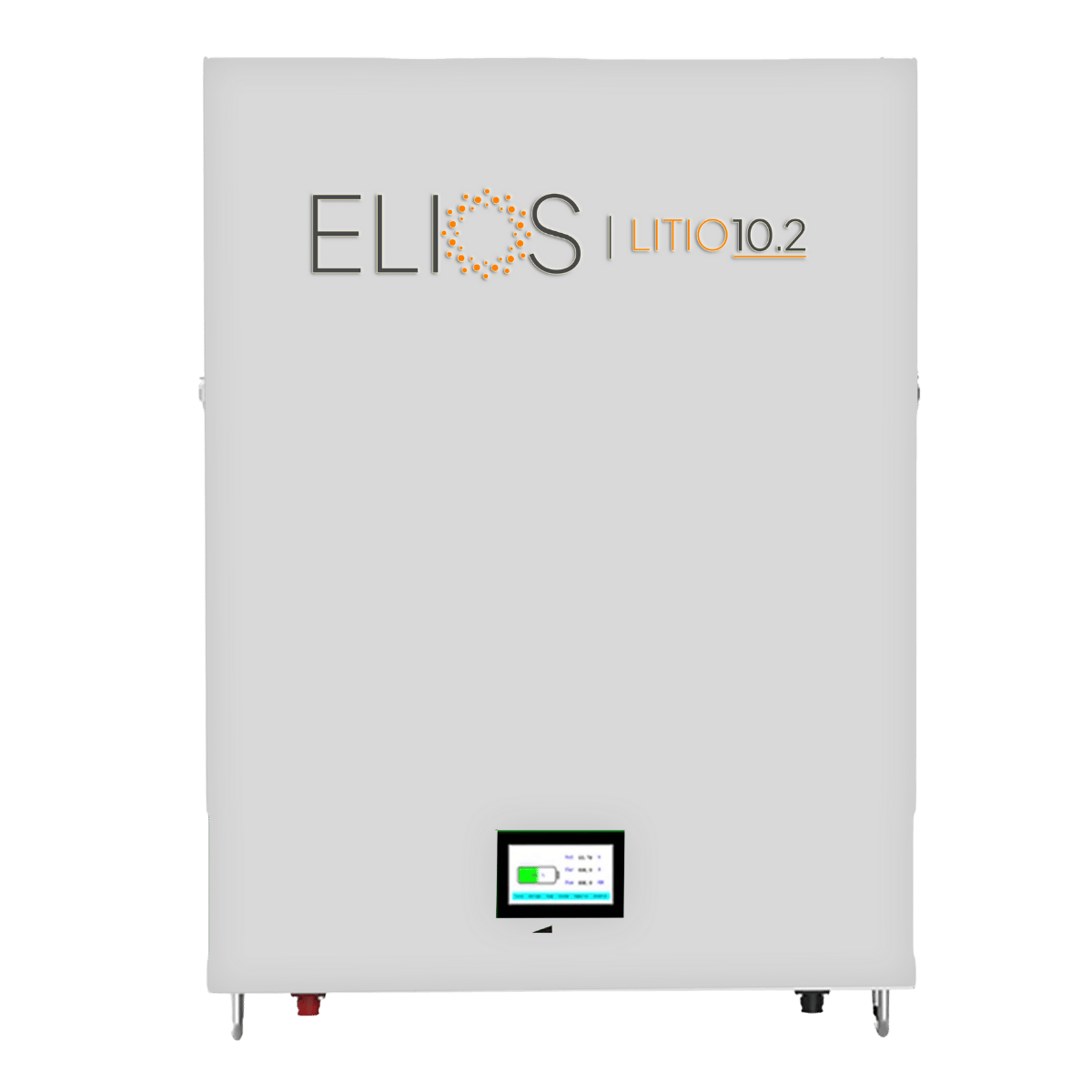

Storage wall 51.2V 200Ah Elios litio 10.2kw

Wall mount style sealed deep cycle lithium battery that includes an advanced Battery Management System (BMS) for maximum protection and optimization.

Certified UL 1973, the battery is installed on the wall to optimize the available interior space of the residence.

It is suitable for hybrid systems that combine grid and solar energy.

Main features:

Nominal voltage: 51.2V
Ability : 200Ah


Recommended charging current: 120A
Maximum charging current: 120A
Continuous discharge current: 120A

Maximum charge/discharge power: 6.14 kW
Peak discharge power (1 min): 8.19 kW / 160A

Maximum number of units in parallel: 16

Fixing type: Wall mount
Dimensions: 21.7 X 39.4 X 6.5 in
Weight : 97 kg (104 lbs)

Advanced Features:

Self-heating: Yes
Communication ports: RS485, CAN, Wifi (With Wifi stick), Dry Contact
LCD display screen: No
Short circuit protection: Yes

Terms of Use:

Charging temperature: -5 to 55°C
Discharge temperature: -15 to 55°C
Storage temperature: -15 to 55°C

Certifications and security:
Protection index: NEMA Type 4
Certifications: UL 9540A, UL 1973, UN38.3, RoHS, IEC 62619, CE-IEC 61000, IEC 62040
Environmental standards: RoHS

Guarantee :
10 year limited warranty on the product
10 year limited performance warranty

51.2V 200Ah Elios Litio 10.2KW Storage Wall - Datasheet (EN)
