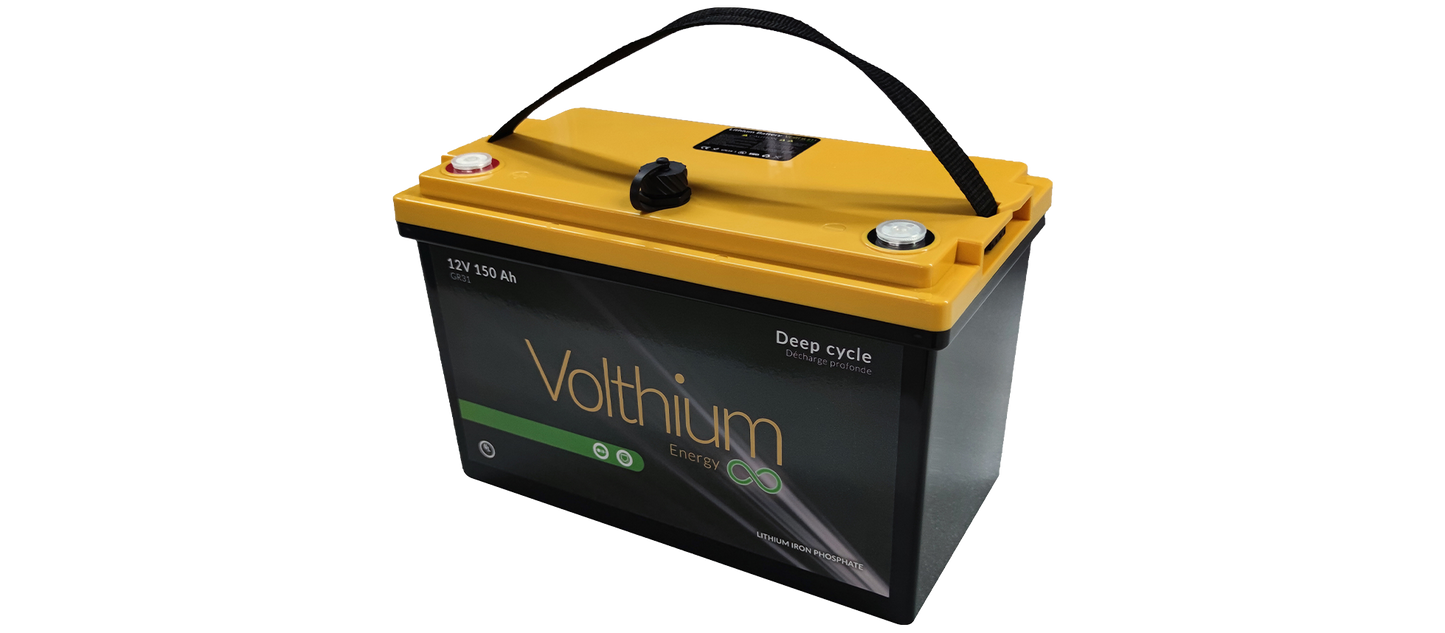

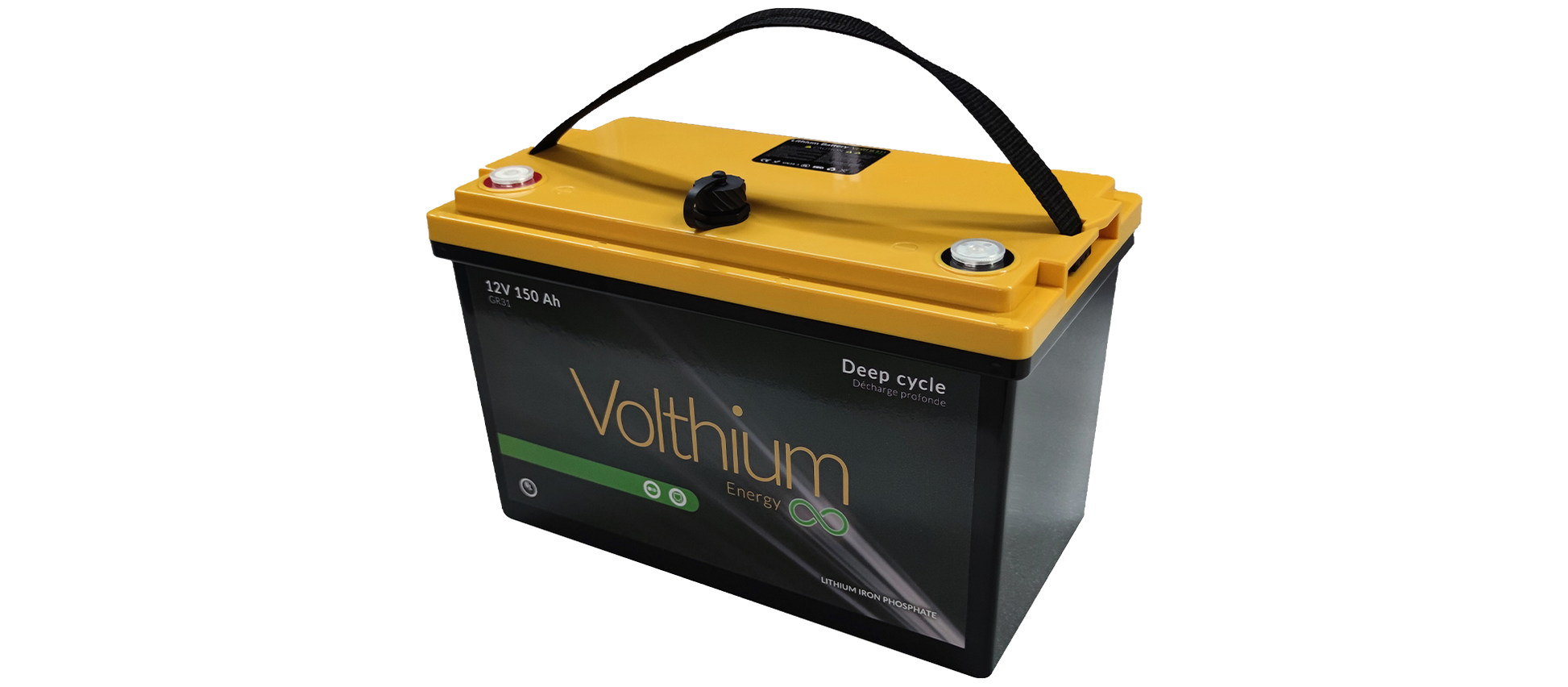

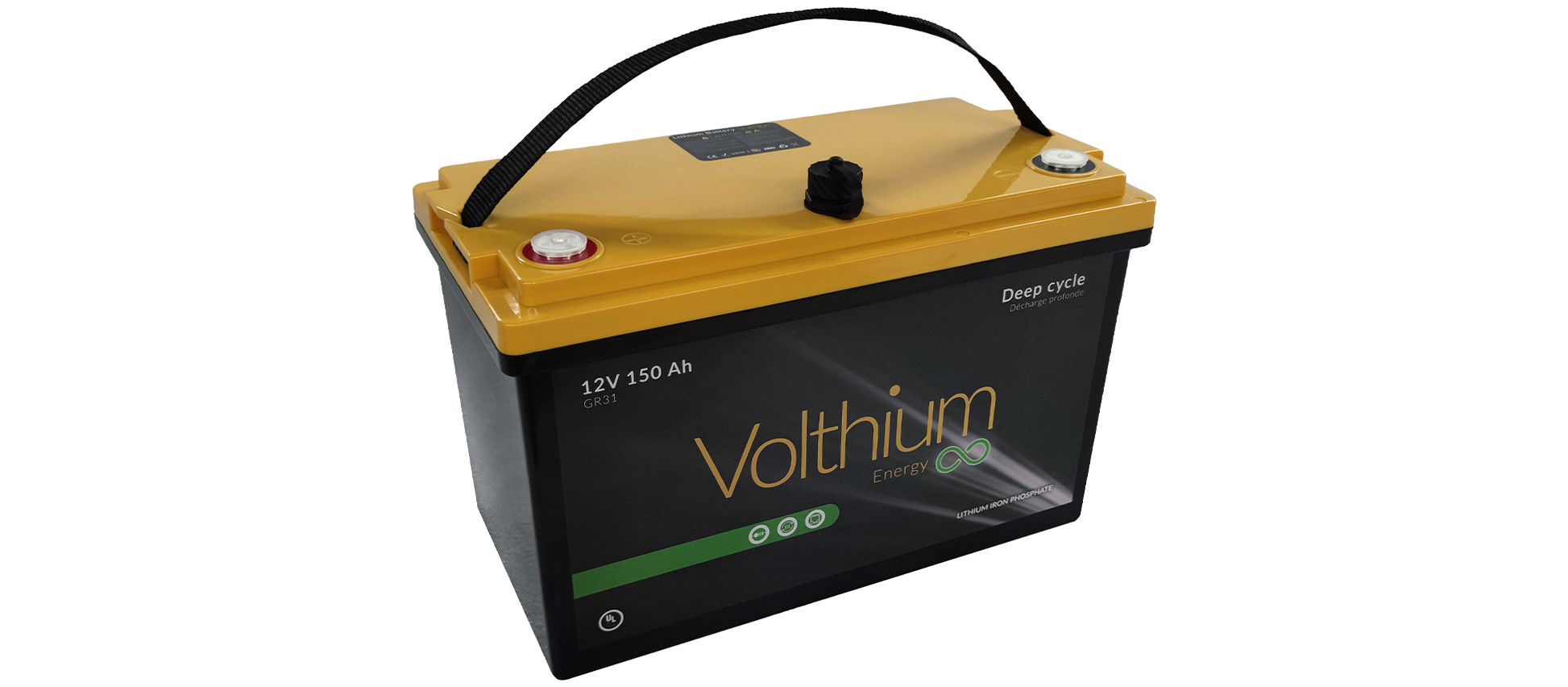

Lithium battery 12V 150Ah with Soft Start of volthium

This lithium battery is designed for solar energy storage systems, offering high performance and long durability. It includes an advanced Battery Management System (BMS) for maximum protection and optimization.

Its GR31 format makes it practical for any type of installation. It allows for expandable storage capacity thanks to a connection of up to 4 units in parallel and 4 in series.

Main features:

Nominal voltage: 12.8V
Ability : 150Ah (1,920 Wh of energy)
Capacity @20A: 450 min

Recommended charging current: 5 to 80A
Maximum charging current: 80A
Continuous discharge current: 150A

Maximum number of units in series: 4
Maximum number of units in parallel: 4

Format: GR31
Weight : 17.2 kg (38 lbs)
Terminal type: M8

Performance and lifespan:
30% discharge: ≥ 8,200 cycles
80% discharge: ≥ 6,000 cycles
100% discharge: ≥ 3,500 cycles

Advanced Features:

Bluetooth: Optional (Purchase of a Bluetooth dongle is required)
Self-heating: Optional
Communication ports: RS485, CAN Hub (VE.CAN compatible)
Short circuit protection: Yes

Terms of Use:

Charging temperature: 0 to 45°C
Discharge temperature: -30 to 60°C
Storage temperature: -20 to 45°C

Certifications and security:

IP66 Protection (Splash Resistant)

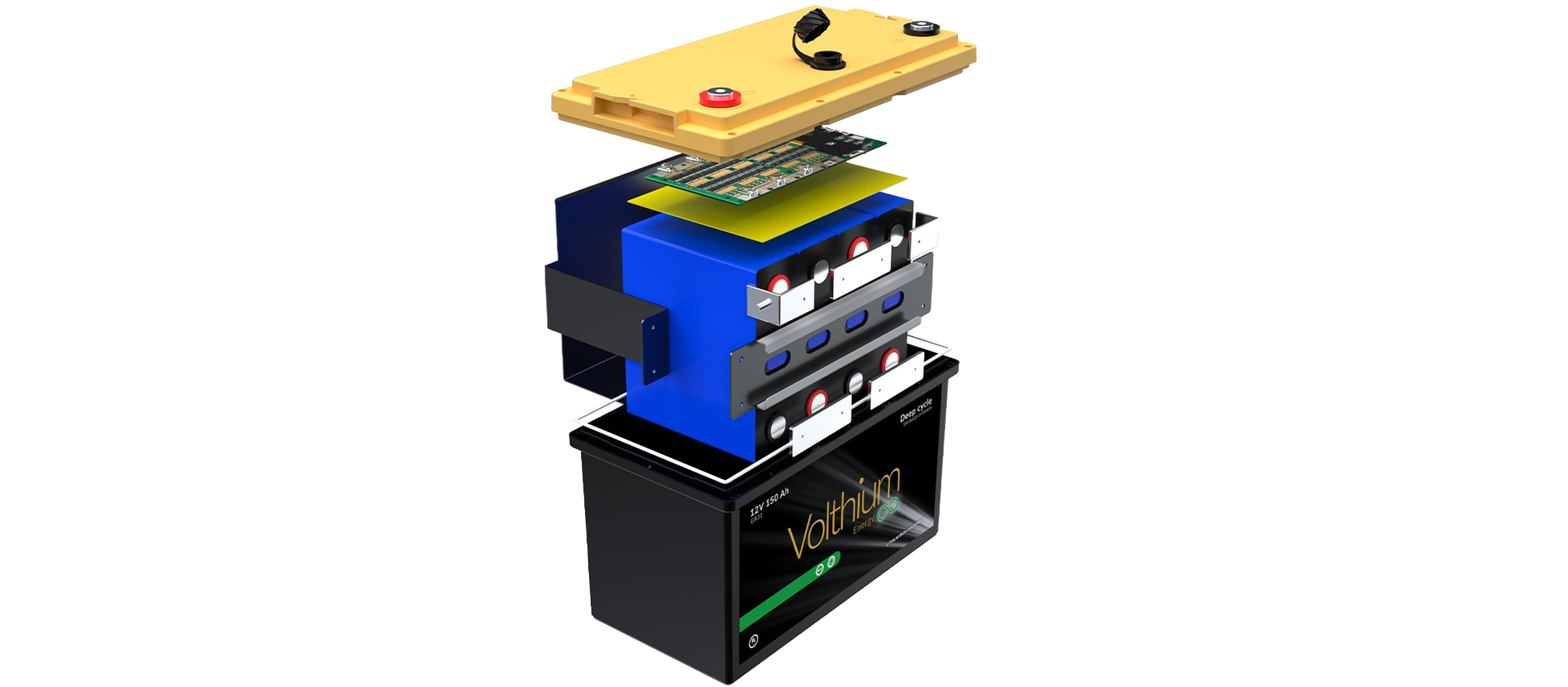

Design: 4S1P
Cells: UL1973
Transport: UN 3480 | Class 9

Guarantee :
10 years

Volthium 12V 150Ah Lithium Battery with Soft Start - Datasheet (EN)
12V 150Ah lithium battery with Soft Start from Volthium - User Manual (FR)
