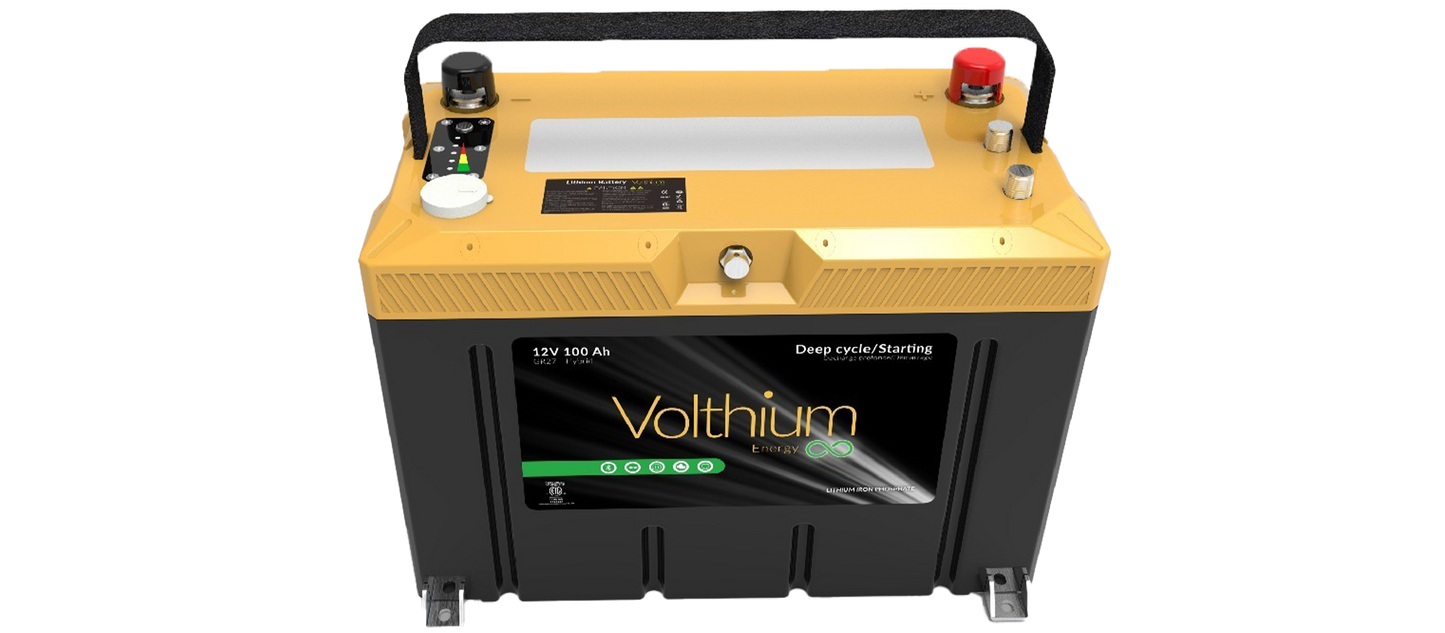

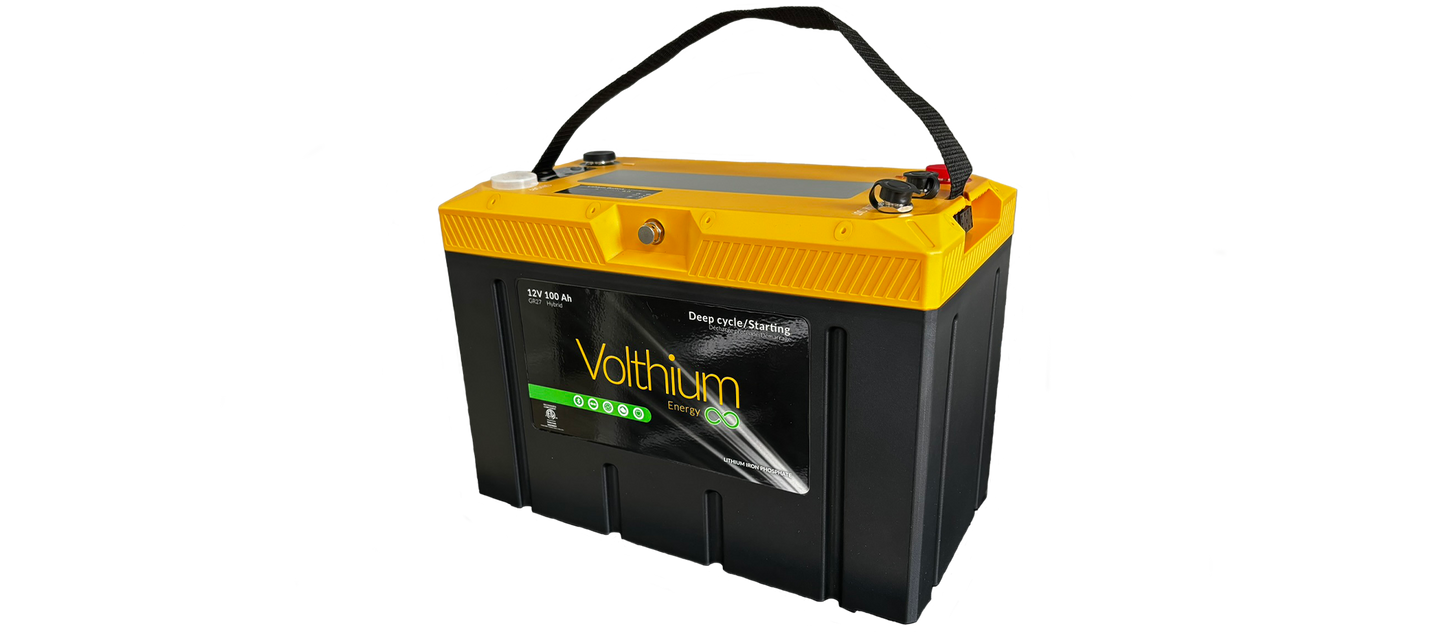

12V 100Ah Pro Series Lithium Battery

This deep cycle lithium battery is designed for solar energy storage systems, offering high performance and long durability. It includes an advanced Battery Management System (BMS) for maximum protection and optimization.

From the Volthium Pro series, it is GR27 format and includes the following options:

• On/Off button
• Bluetooth
• Built-in alternator protection
• Cold load protection
• Self-heating

Main features:

Nominal voltage: 12.8V
Ability : 100Ah
Capacity @20H: 300 min (1280 Wh of energy)
Recommended charging current: 5 to 60A
Maximum charging current: 110A
Continuous discharge current: 150A

Maximum number of units in parallel: 4
Maximum number of units in series: Unlimited

Format: Group 27
Dimensions: 12.13 X 6.61 X 8.3 in
Weight : 12.2 kg (27 lbs)
Terminal type: M8

Performance and lifespan:

30% discharge: ≥ 8,200 cycles
80% discharge: ≥ 6,000 cycles
100% discharge: ≥ 3,500 cycles

Advanced Features:

Bluetooth: Yes
Self-heating: Yes
Communication ports: RS485
LCD display screen: Yes
Short circuit protection: Yes

Terms of Use:

Charging temperature: 0 to 45°C
Discharge temperature: -30 to 60°C
Storage temperature: -20 to 45°C

Certifications and security:

IP67
Certified Cells: Full ETL | CE | UL1973 | ABYC E-13
Transport: UN 3480 | Class 9

Guarantee :
10 years
