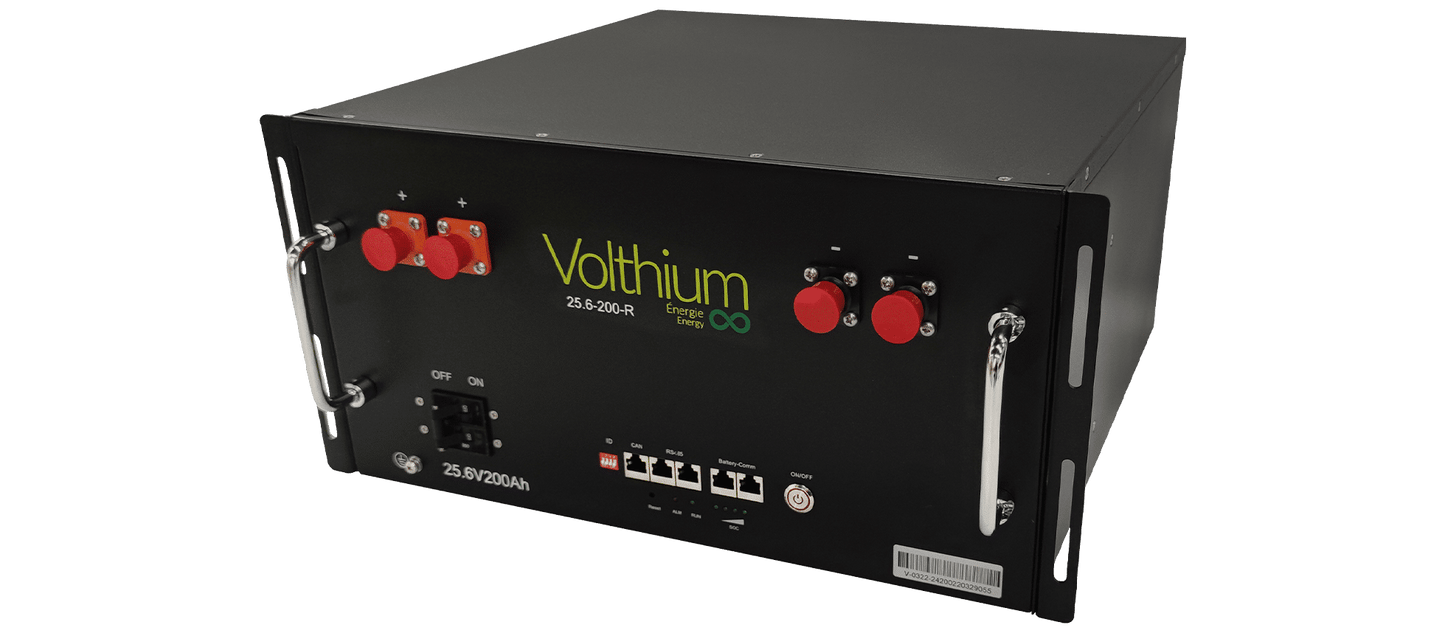

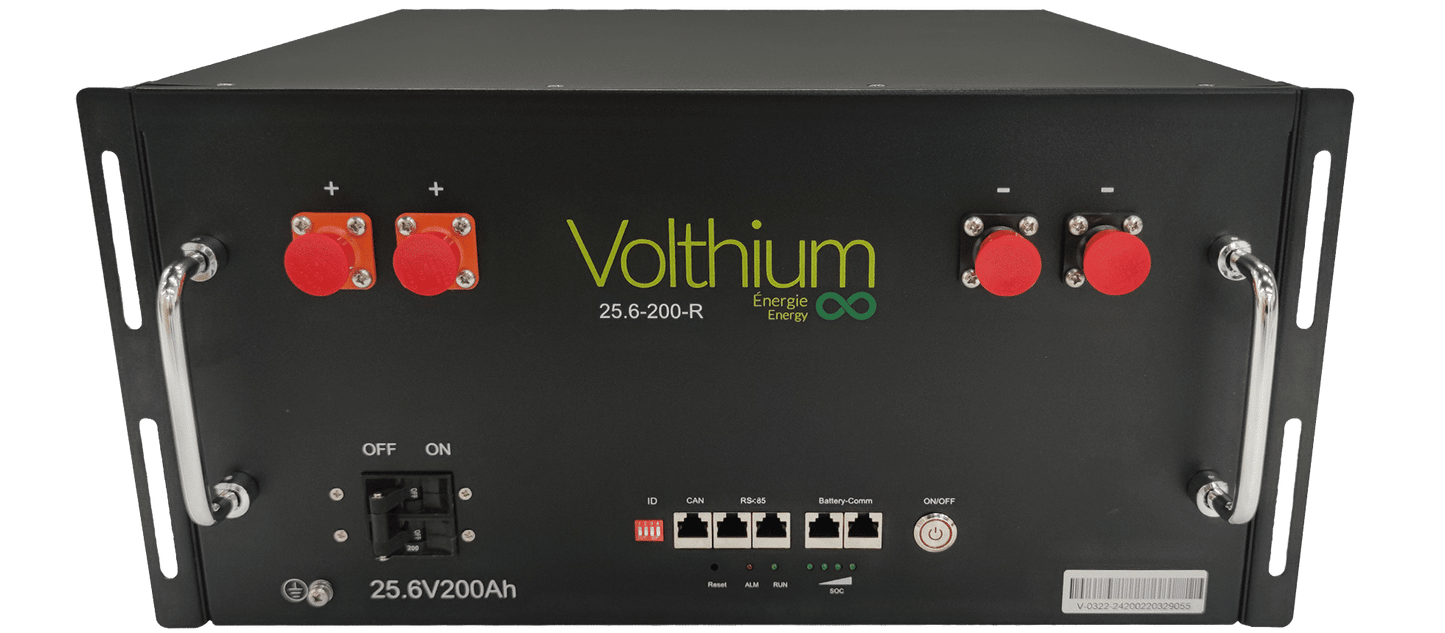

Rackmount battery 25.6V 200Ah of volthium

This deep cycle lithium battery is designed for solar energy storage systems, offering high performance and long durability. It includes an advanced Battery Management System (BMS) for maximum protection and optimization.

Ideal for residential and commercial installations, it allows for expandable storage capacity through connection of up to 16 units in parallel per bank and up to 5 banks.

Main features:

Nominal voltage: 25.6V
Ability : 200Ah (5,120 Wh of energy)
Recommended charging current: 200A
Maximum charging current: 150A
Continuous discharge current: 150A

Maximum number of units in parallel: 16 per bank

Support Type: Rackmount
Format: 3U
Weight : 45.8 kg (101 lbs)
Terminal type: M10

Performance and lifespan:

30% discharge: ≥ 8,200 cycles
80% discharge: ≥ 6,000 cycles
100% discharge: ≥ 3,500 cycles

Advanced Features:

Bluetooth: No
Self-heating: Optional (automatic and manual activation, -30°C to 11°C)
Communication ports: 2x RS485, 2x Batt. Com., 1x CAN (VE.CAN compatible)
Short circuit protection: Yes

Terms of Use:

Charging temperature: 0 to 45°C
Discharge temperature: -20 to 65°C
Storage temperature: -20 to 45°C

Certifications and security:

Certifications: ETL SPE-1000, UL1973, CSA UL9540A, IEC62619, IEC62660
Certified circuit breaker: UL1077 @ CSA C22.2 No. 235-04
Certified terminal: UL1977
Transportation : UN 3480 | Class 9

Guarantee :
4 years

Technical data sheet not currently available. Please speak with an advisor to learn more.
