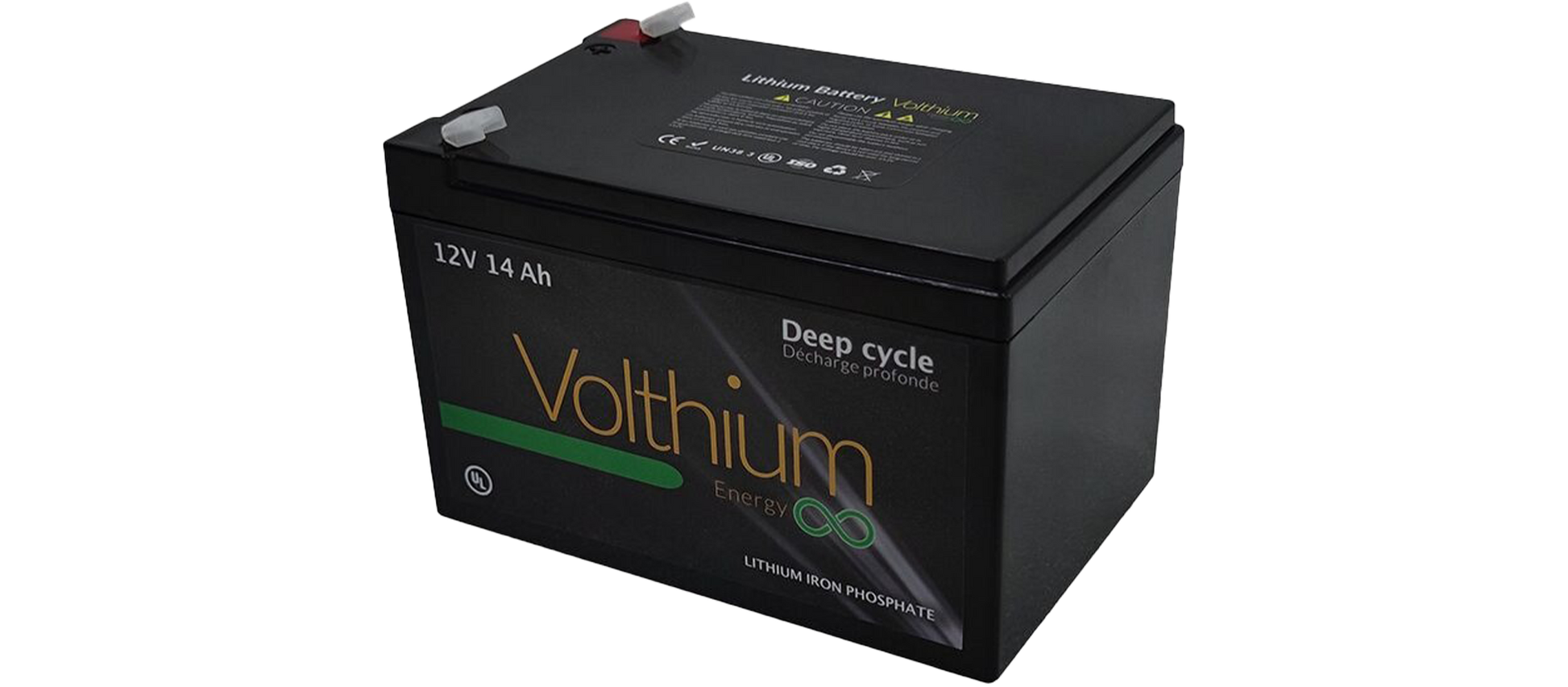

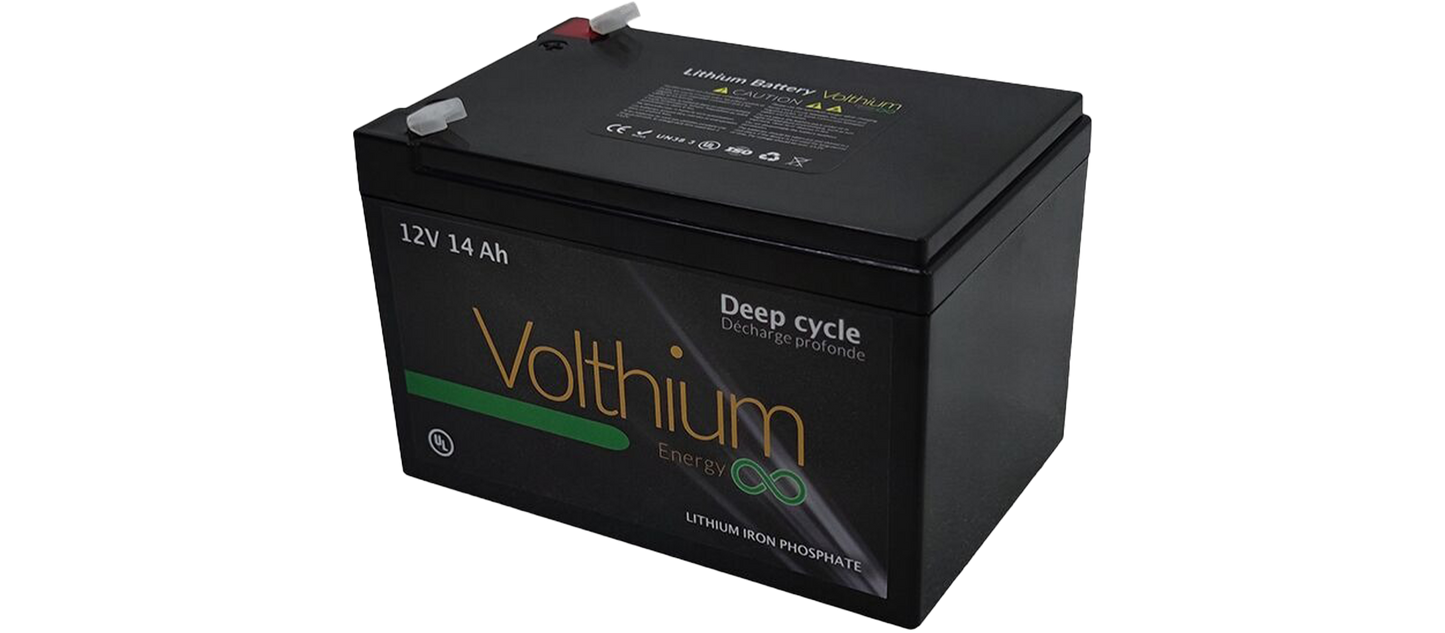

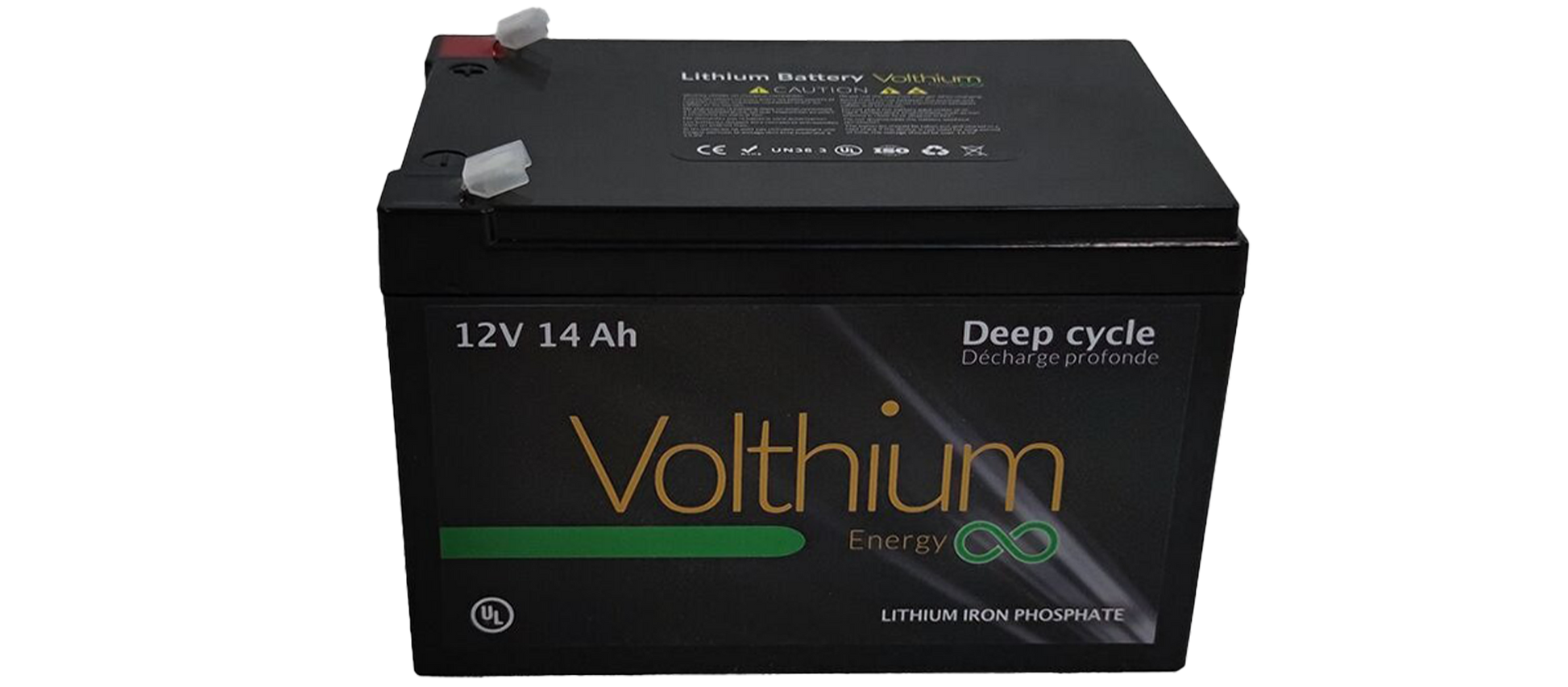

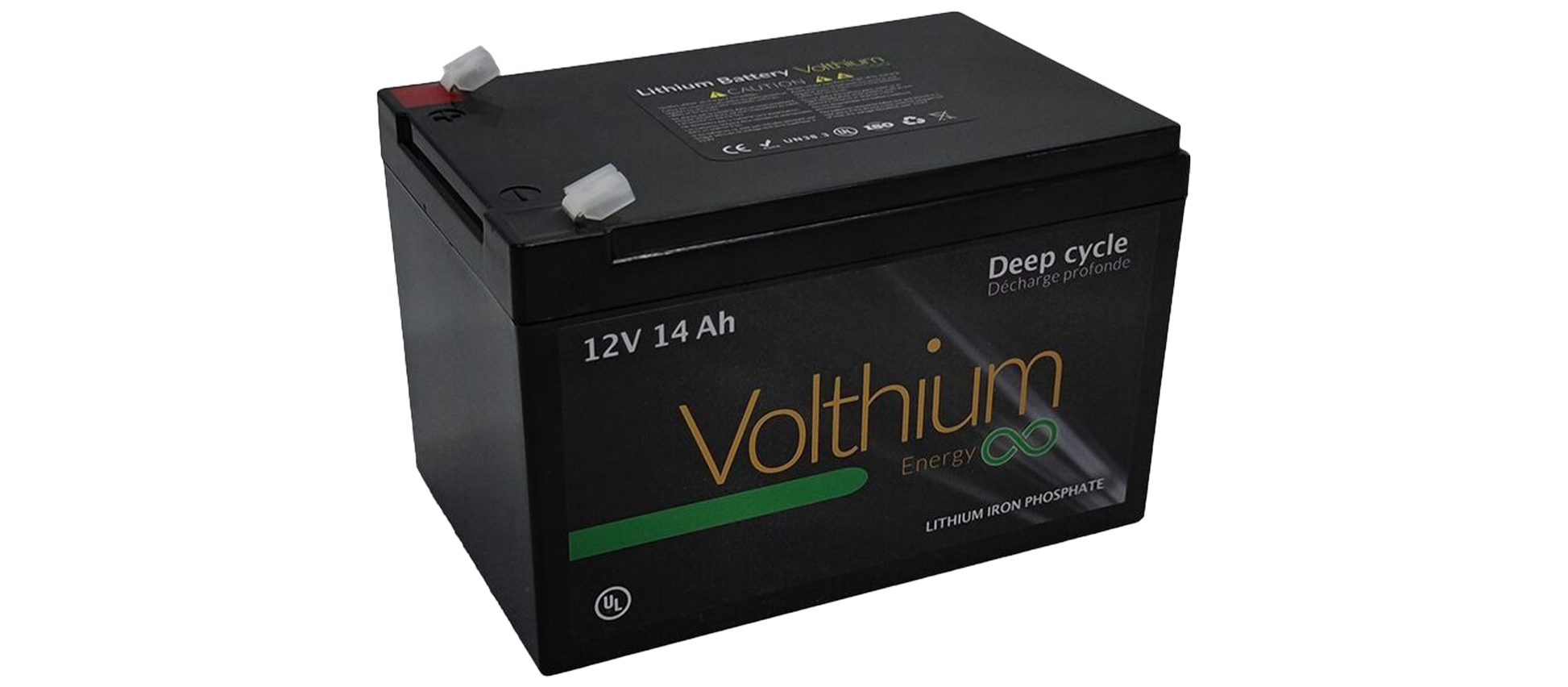

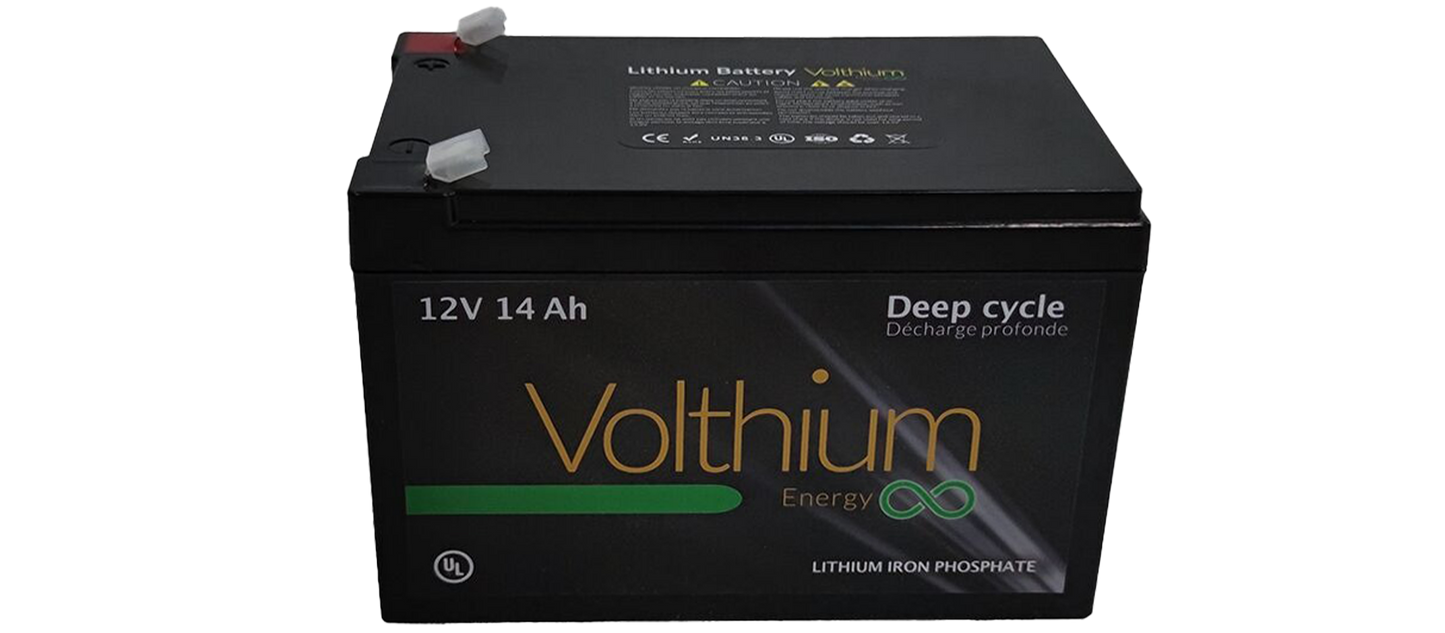

12v 14Ah Lithium battery of volthium

This deep cycle lithium battery is designed for solar energy storage systems, offering high performance and long durability. It includes an advanced Battery Management System (BMS) for maximum protection and optimization.

Ideal for small installations, it allows expandable storage capacity thanks to a connection of up to 4 units in parallel and 2 in series.

Main features:

Nominal voltage: 12.8V
Ability : 14Ah
Capacity @20H: 65min (180 Wh of energy)
Recommended charging current: 1 to 3A
Maximum charging current: 10A
Continuous discharge current: 3A

Maximum number of units in parallel: 4
Maximum number of units in series: 2

Format: N / A
Dimensions: 5.95 X 3.86 X 3.81 in
Weight : 1.4 kg (3 lbs)
Terminal type: tabs

Performance and lifespan:

30% discharge: ≥ 8,200 cycles
80% discharge: ≥ 6,000 cycles
100% discharge: ≥ 3,500 cycles

Advanced Features:

Bluetooth: No
Communication ports: No
Short circuit protection: Yes

Terms of Use:

Charging temperature: 0 to 45°C
Discharge temperature: -20 to 65°C
Storage temperature: -20 to 45°C

Certifications and security:

Certified cells: UL1642
Transport: UN 3480 | Class 9

Guarantee :
10 years

Volthium 12V 14Ah Lithium Battery - Datasheet (EN)
Volthium 12V 14Ah Lithium Battery - User Manual (EN)
